Description
?
?
?
?
?

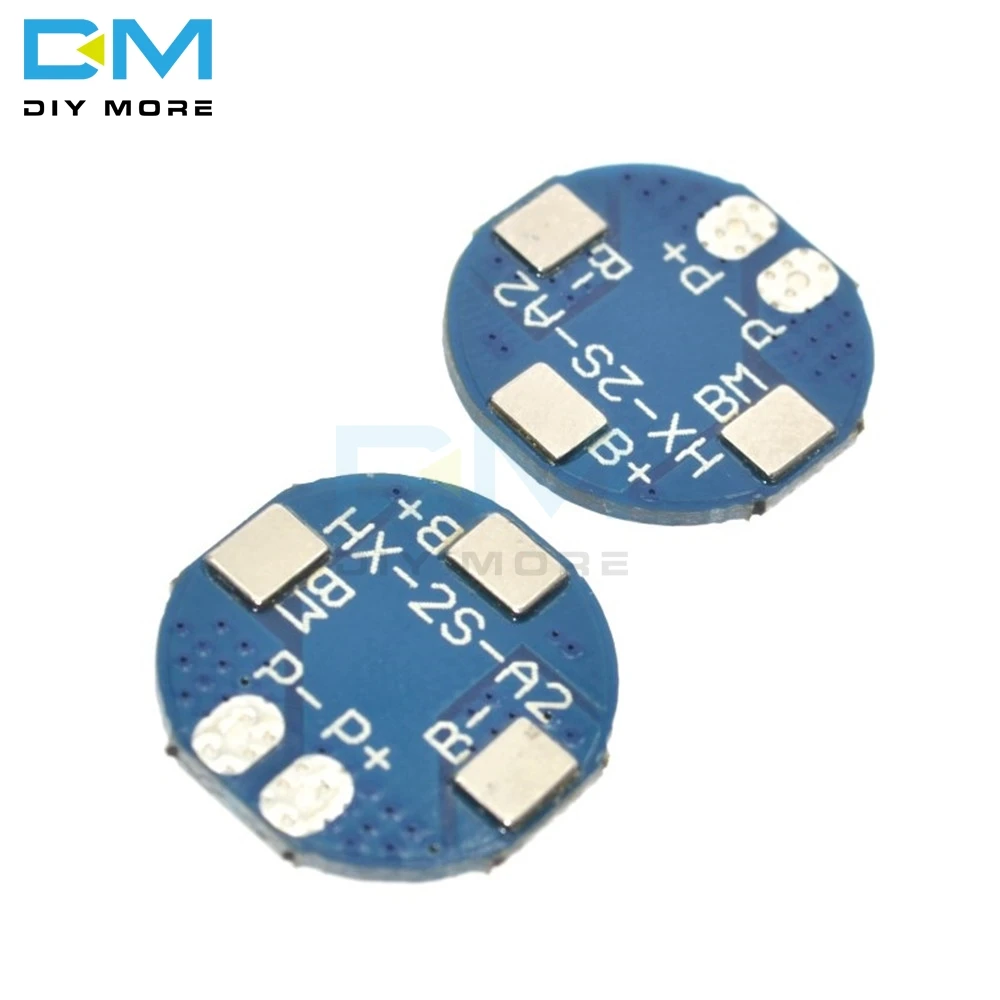

Lithium battery protection board properties:
Model: HX - 2 s - A2 of charging voltage range: 4.25 + / - 0.05 v to 4.35 v
Size: 17.5 * 17.5 * 17.5 mm discharge voltage range: 2.5 + / - 0.05 v to 3.0 v
Maximum working current: 5 a working temperature: - 40 - + 50 ¡ã
Maximum instantaneous current: 7 a storage conditions: - 40 - + 80 ¡ã
Static electricity: less than 10 ua useful life: more than 50000 hours
Resistance: less than 300 m ¦¸ short circuit protection: to protect and restore must charge
Charging voltage: 8.4 V - 9 V
?
?
Welding point:
?
?
B. + connect battery anode;
?
B. - connect battery cathode;
?
MB, connect battery 1 and 2 before the join points;
?
P. + correct answer the charge/discharge (charging/discharging end sharing);?
?
P. - answer the charge/discharge end negative (charging/discharging end sharing)?
?
?
Package: ?
?
1pcs ?X ?2S 5A Li-ion Lithium Battery 7.4v 8.4V 18650 Charger Protection Board bms pcm for li-ion lipo battery cell pack?
?
?
?
?
?
?
