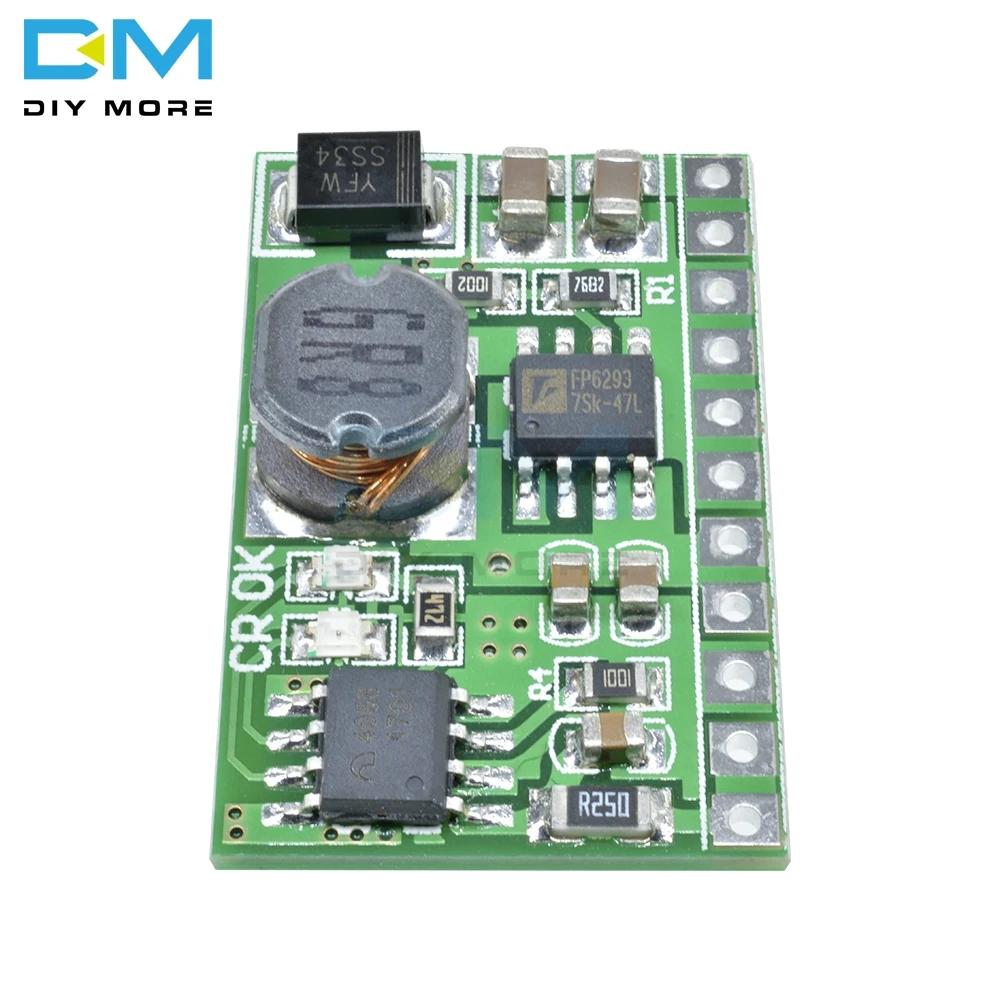

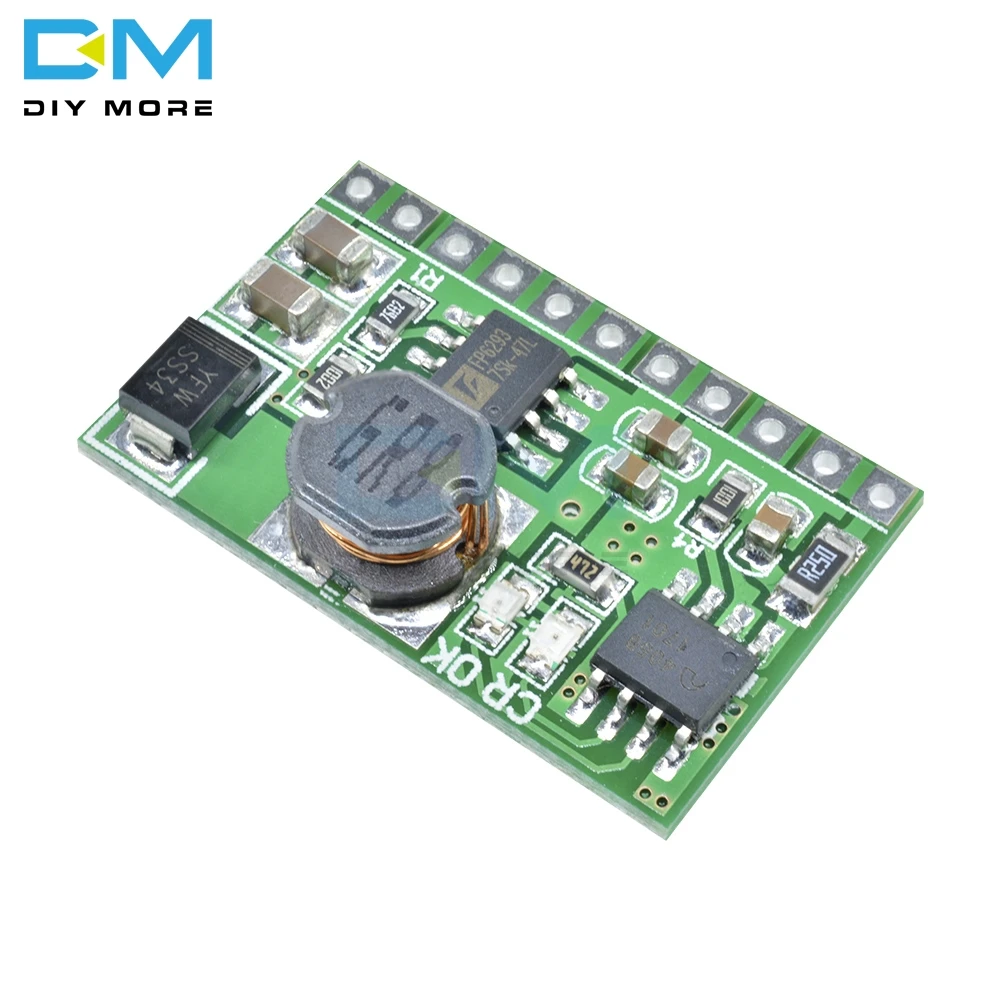

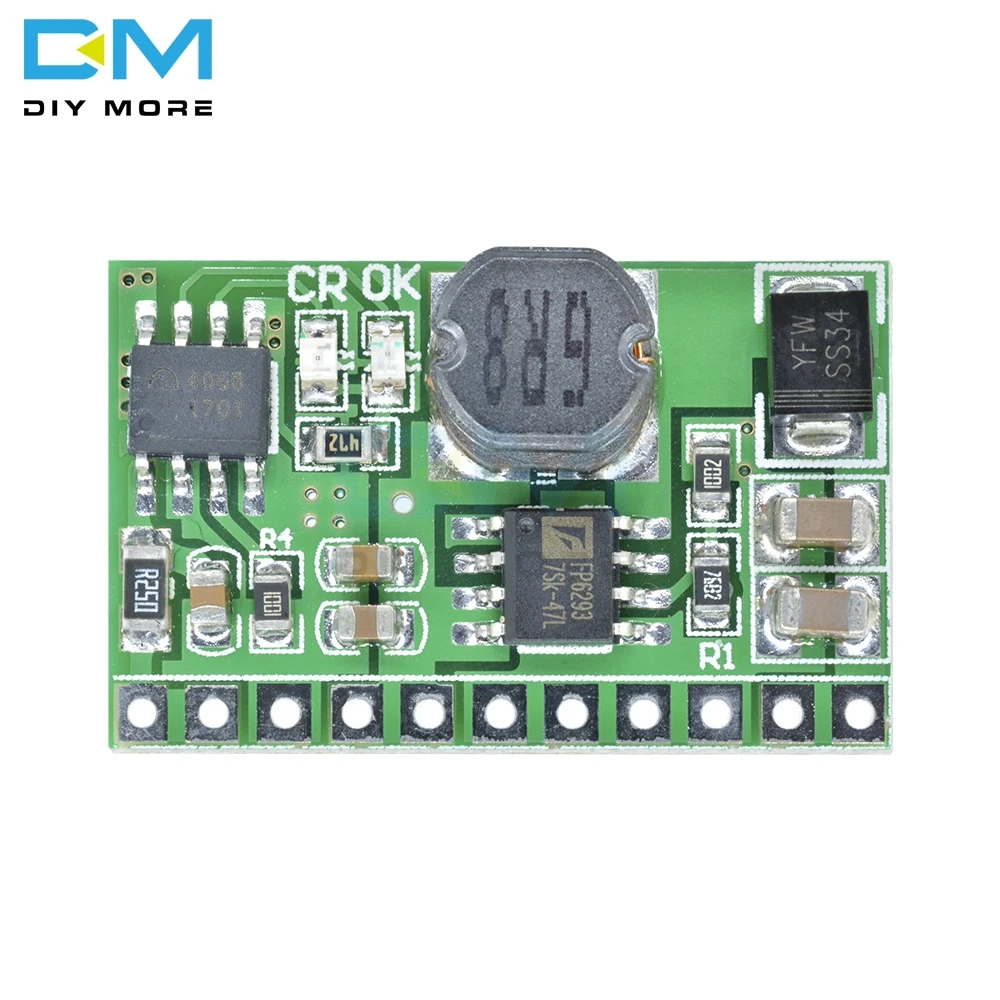

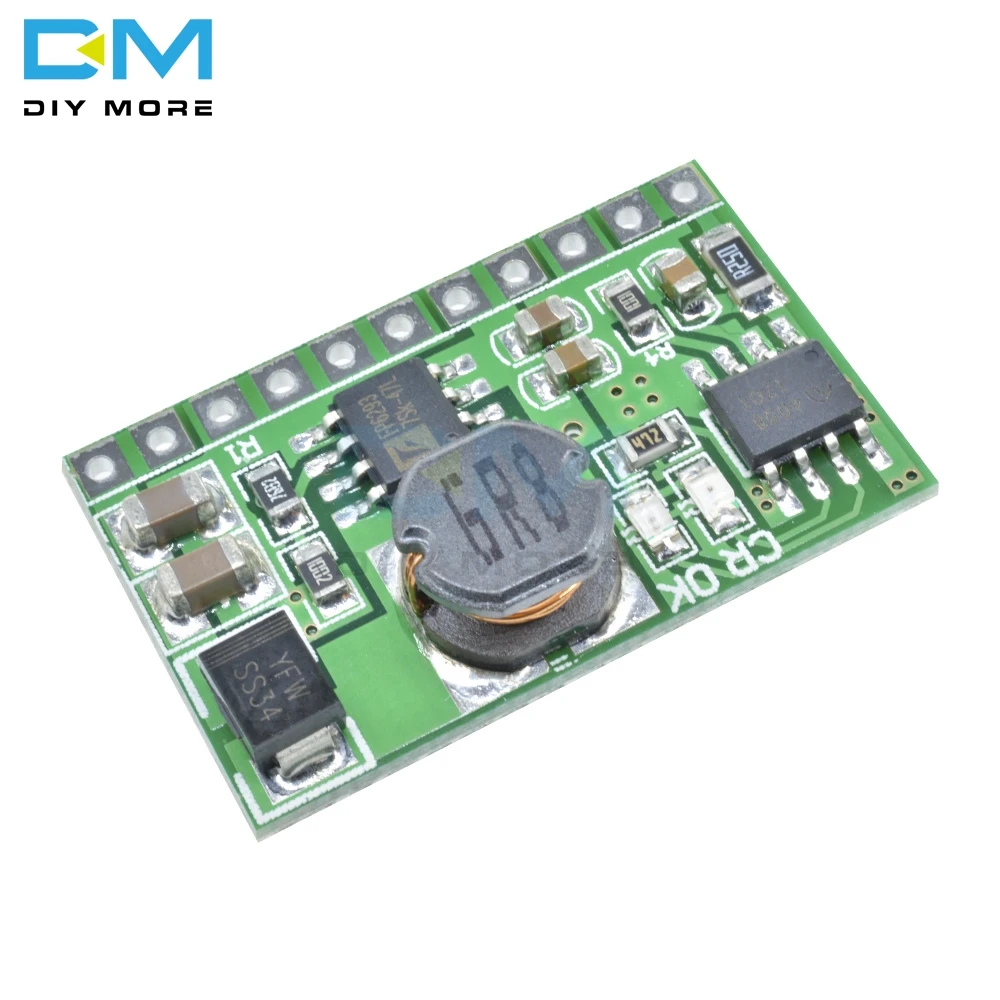

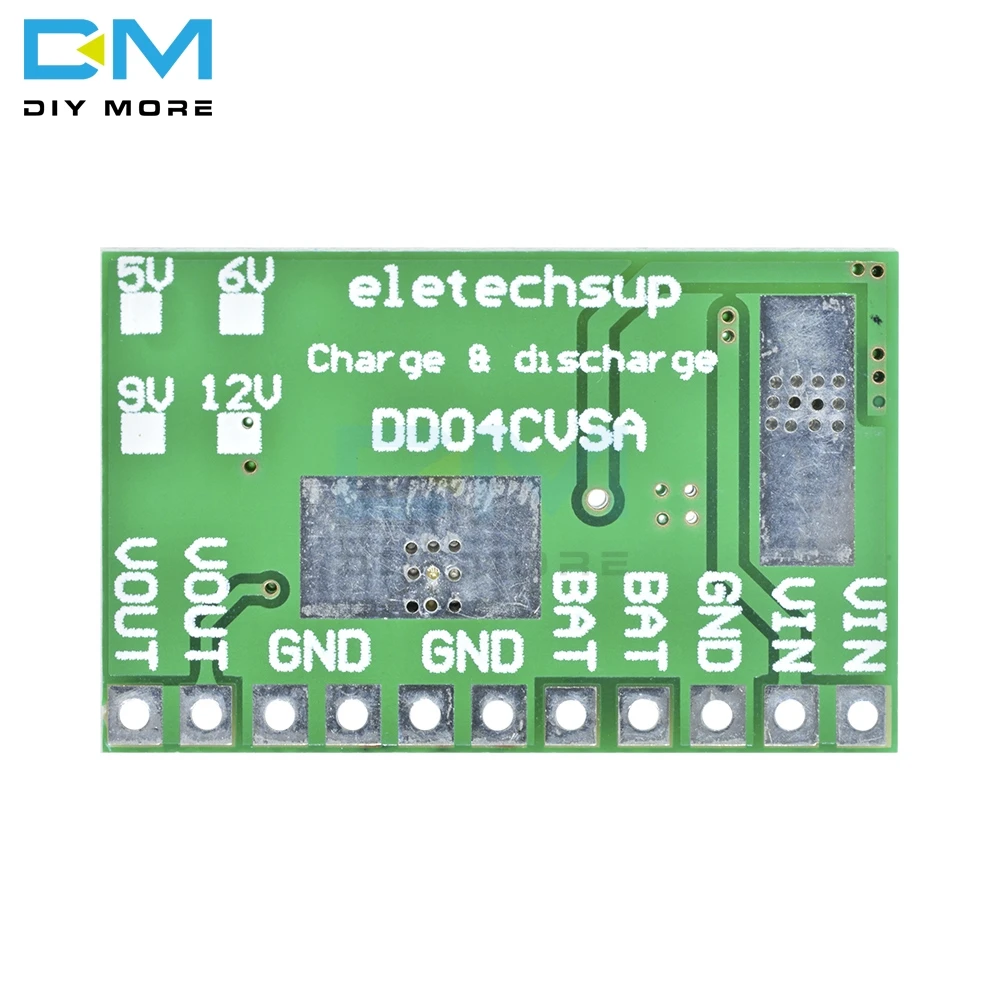

10W charge and Discharger(boost) modules
??
Charge voltage :? DC 5V ( ?4.6V-6.5V ?)
Charging current : 0-1A?
Full charge voltage : 4.2V+-2%.
Led indicator : "OK" LED is fully charged OR battery failure status indicator;
? ? ? ? ? ? ? ? ? ? ? ? "CR" LED is charge status indicator
??
Discharge current : 0-3.5A;
Discharge quiescent current : 200uA
Discharge conversion efficiency : 78%-91%
??
Output current ? ?: 0-2.1A(5V);
??
Operating ambient temperature : ?-40¡ã to +85¡ã
Storage temperature : ?-65¡ã to +125¡ã
?
Size: 28 x 18 x 6.3mm
Weight : 2.7g
??
Note :
1?This module without lithium battery over-discharge protection
2?In order to achieve more than 5W, it is recommended to use two or more batteries in parallel
?
Applications:
Battery powered equipment
Lithium Battery 18650 14500
Mobile phone diy
Portable charger diy
UPS power supply equipment diy
Solar charging
MP3/MP4 player
Audio equipment
Video equipment
Portable Devices
Bluetooth Wifi?Applications
MCU development board
?
Package :
1 x module
?
?
?
?
?
?
?
?
?
?
