Description
Description:

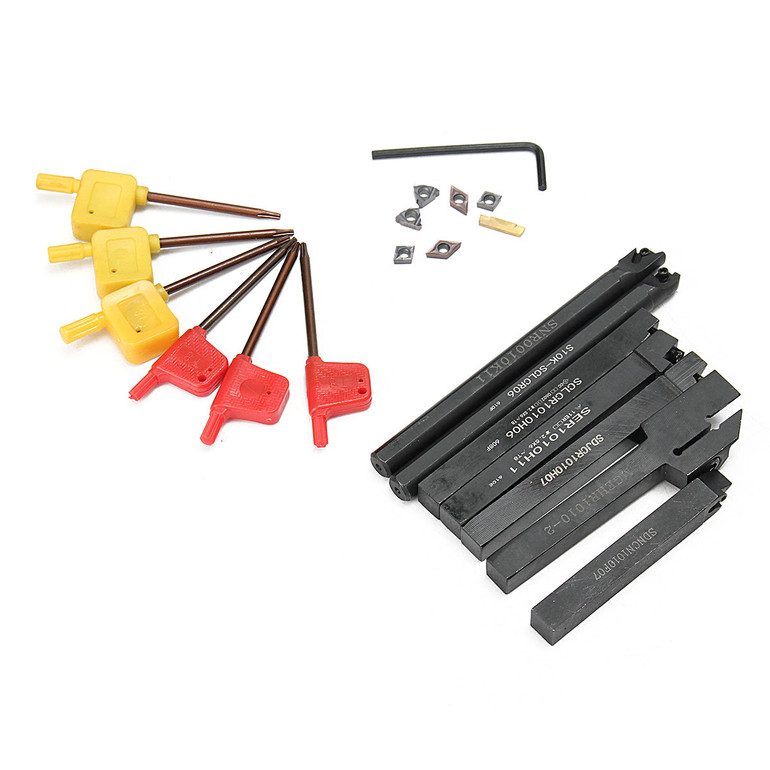

7pcs 10mm Shank Lathe Turning Tool Holder Boring Bar with 7pcs Carbide Inserts
Specification:
Features:
More Details:
7pcs 10mm Shank Lathe Turning Tool Holder Boring Bar with 7pcs Carbide Inserts
Specification:
Model: MGEHR1010-2/ SER1010H11/SCLCR1010H06/ SDJCR1010H07/ SDNCN1010F07/ S10K-SCLCR06/SNR0010K11
Material: 42cr
Inserts Color:silver coating
| Model | Shank diameter | Overall length | Insert |
| MGEHR1010-2 | 10mm | 100mm | MGMN200 |
| SER1010H11 | 10mm | 100mm | ER1/4"blade |
| SCLCR1010H06 | 10mm | 100mm | CCMT060204 |
| SDJCR1010H07 | 10mm | 100mm | DCMT070204 |
| SDNCN1010F07 | 10mm | 100mm | DCMT070204 |
| S10K-SCLCR06 | 10mm | 125mm/5 inch | CCMT060204 |
| SNR0010K11 | 10mm | 125mm/5 inch | 11IR |
Profiling bar for semi-finishing and finishing operations;
Bar hardness approximately 45HRC;
Good toughness and hardness, long service life.
It can reduce the tool grinding cost and improve the cutting efficiency;
Good low temperature impact toughness, improved the surface gloss of the cutting pieces.
Package Included:
7 x Holders
7 x Wrenches
7 x Inserts
