AUTOOL X220 Auto OBDII Car hud OBD2 Port Head-Up Display KM/h MPH Overspeed Warning Windshield Projector Alarm System

Output Frequency: 0000;Wire or Wireless: with cable;Rated Power: engine speed;Size Name: 15*12*10;Brand Name: AUTOOL;Model Name: AUTOOL X220 Car HUD OBD2 Head-Up Display;Highlight 01: Car HUD GPS Head-Up Display;Highlight 02: official authorization;Highlight 03: safe and fast by dhl ups ems fedex;Car Maker001: Audi, Australia Ford, Benz, BMW, Brilliance, Demo, Fiat, Ford, GM;Car Maker002: Chevrolet, Chevy, Chrysler, Citroen, Dacia, Dadi, Daewoo, Daihatsu;Car Maker003: GM, Holden, Honda, Hyundai, Isuzu, Jaguar, Kia, Lancia, Land Rover;Car Maker004: Kia, Lancia, Land Rover, Mahindra, Maruti, Mazda, Mitsubish, Nissan;Car Maker005: Opel, Peugeot, Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda;Car Maker006: Smart, Subaru, Suzuki, Tata, Toyota, Volvo, VW, Yamaha;

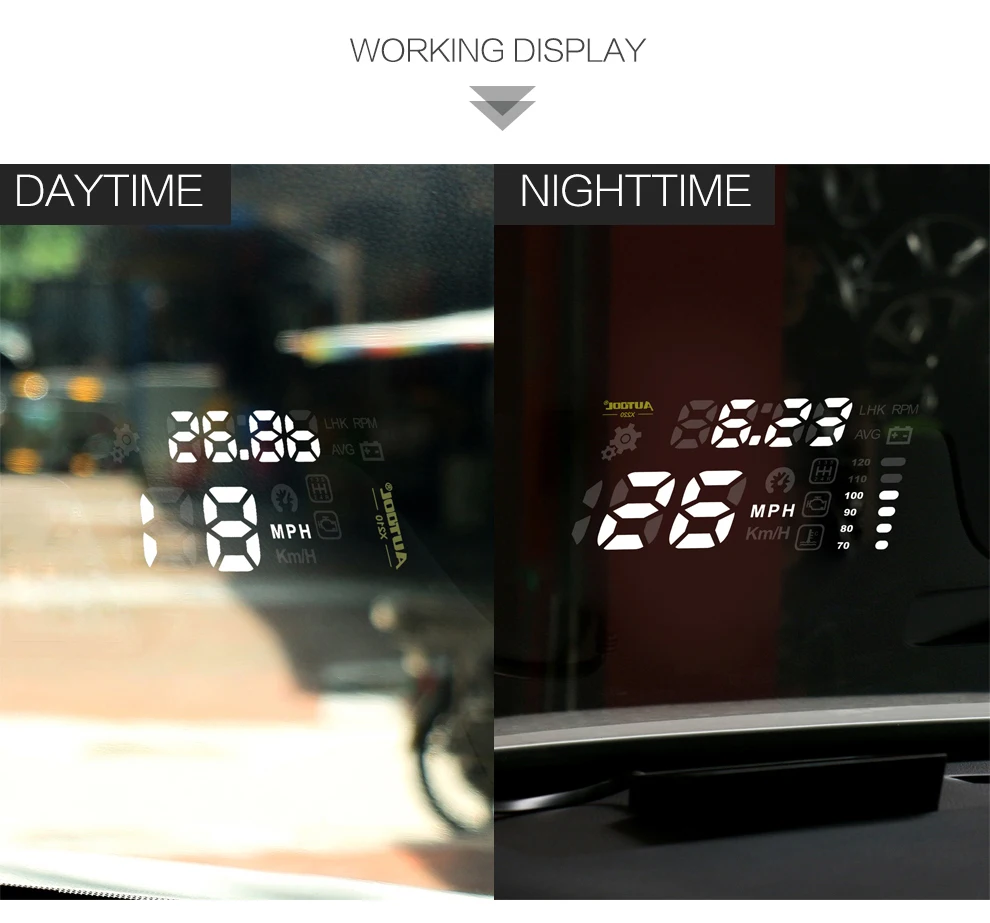

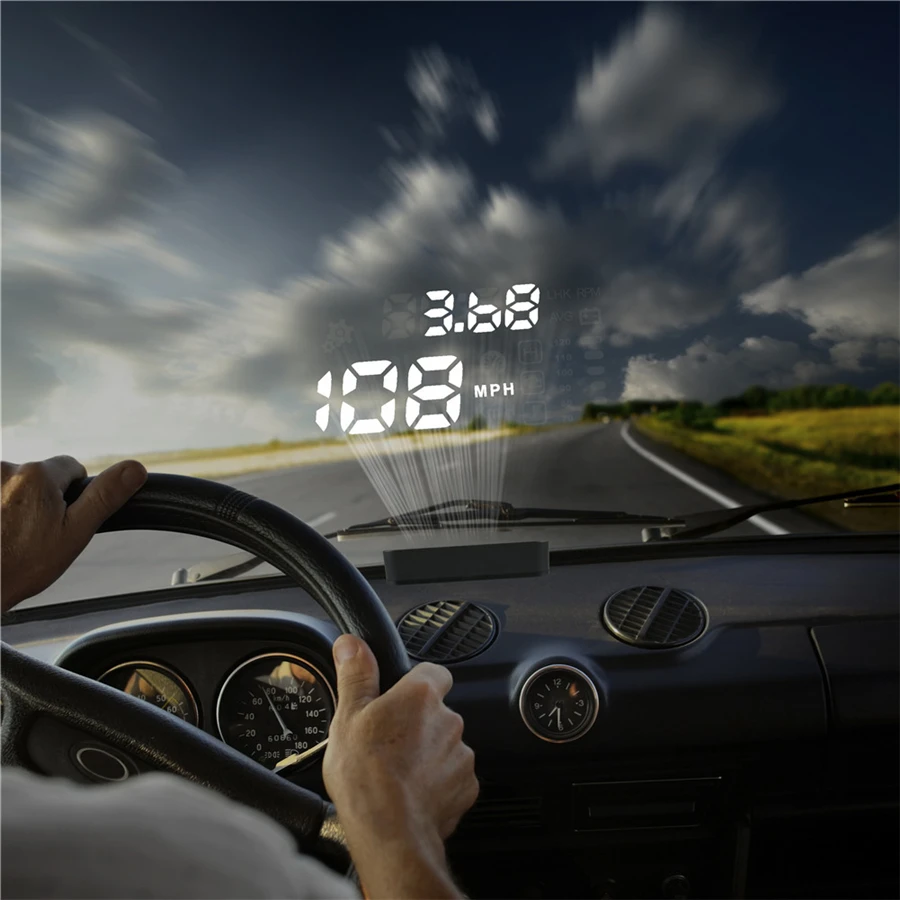

OBD HUD multi-functional vehicle head-up system (OBD HUD), is a safe device for vehicles, easy to install, specially designed to



improve safe driving efficiently. The unit can project vehicle speed, over speed alarm, gearshift warning, engine temperature



alarm,and battery-charge detection parameters onto the windshield, always remind owners to notice the traffic information,



provide safe driving.

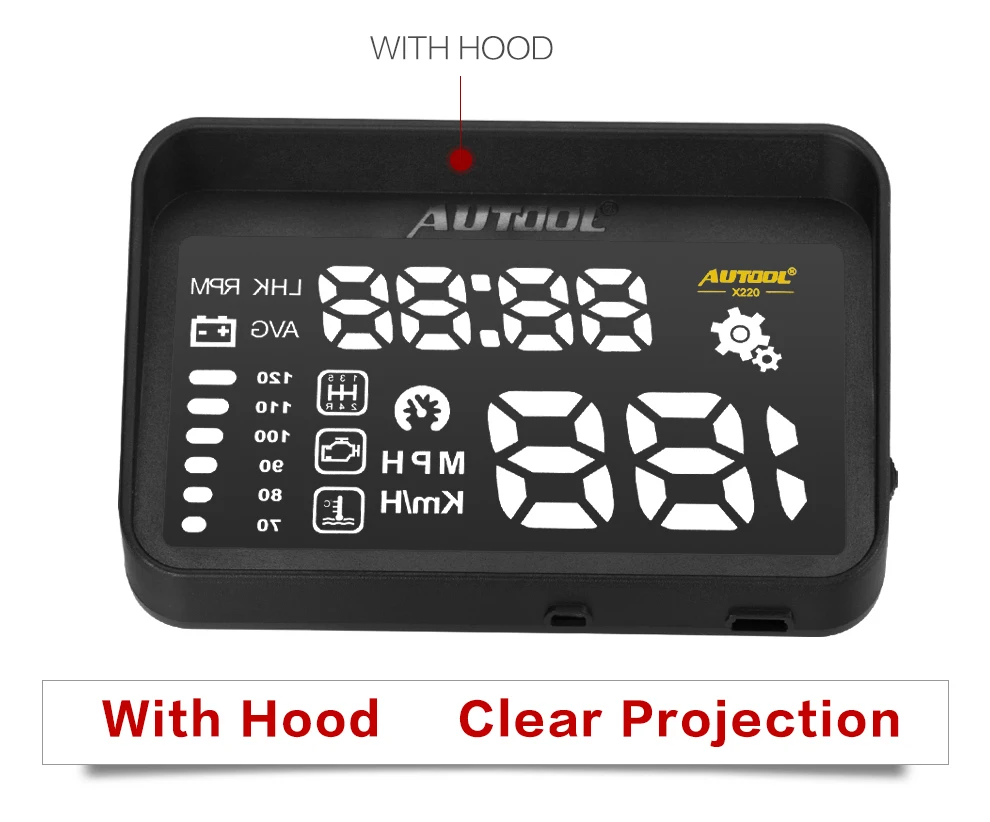

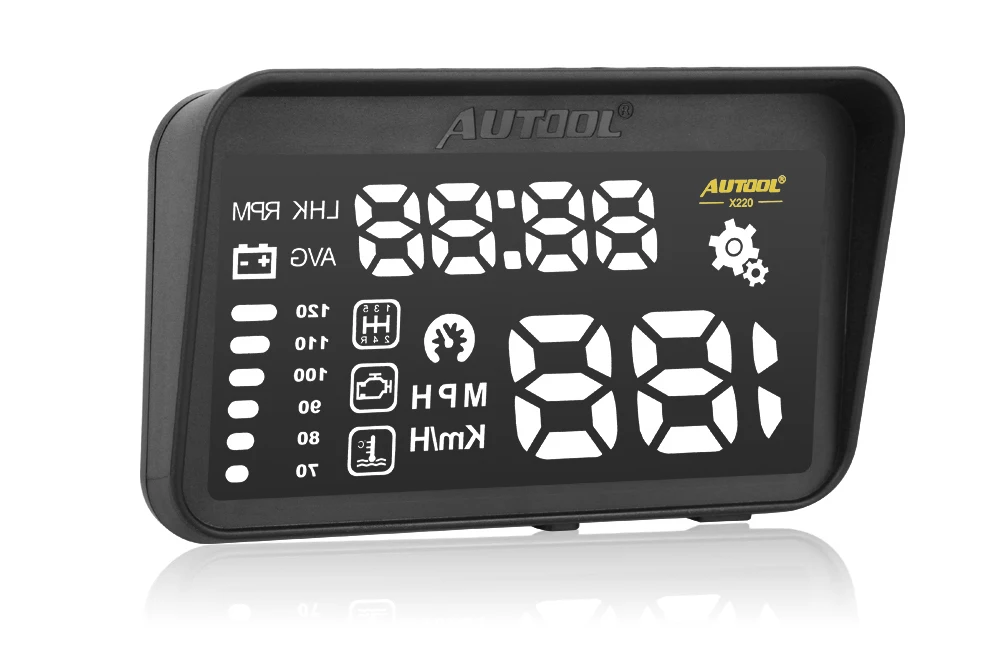

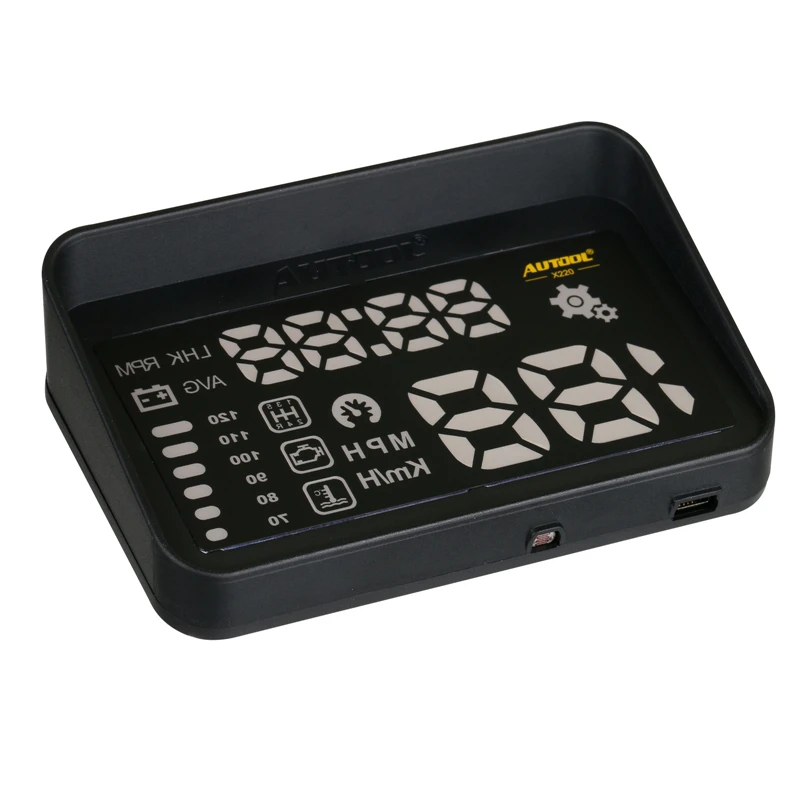

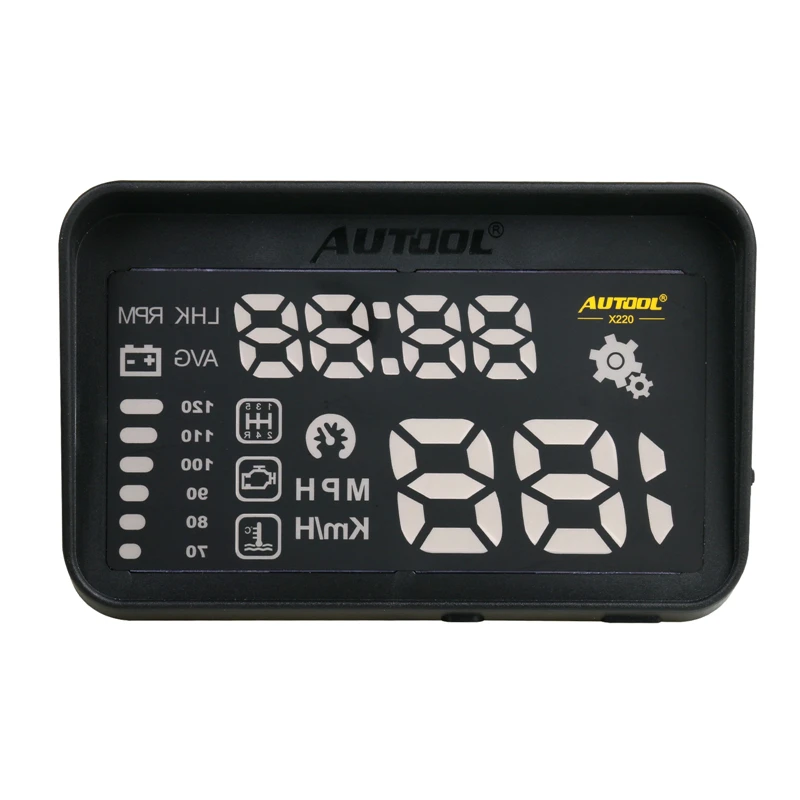

AUTOOL X220 OBD HUD Head-Up Display

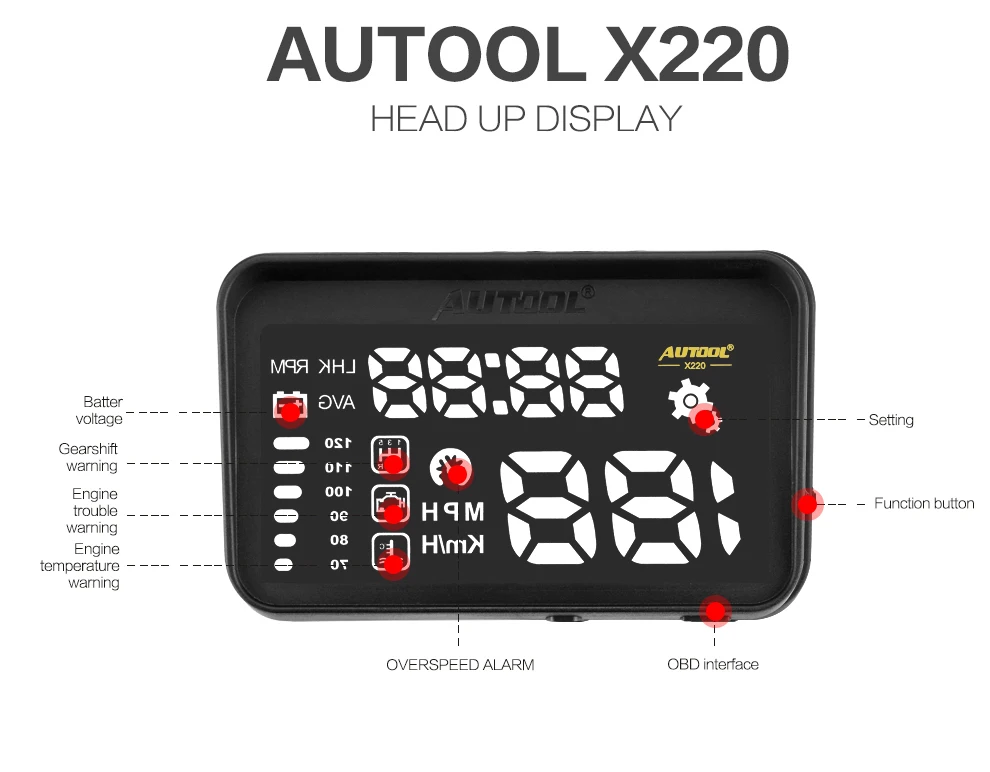

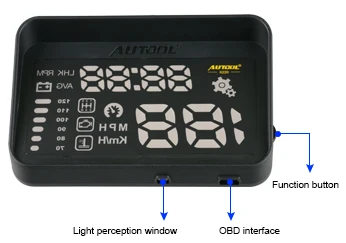

Host appearance, key interface





Function Key- Press M direction to enter setting; Long press M to read the engine fault code; Press M forward or backward



to set the parameters.

Press M forward or backward to set the parameters to switch the display in function window.







Setting: It shows when choosing function setting. It will be lit automatically, and will be off in 5 seconds without operation.


Speed: MPH, Km/H

Water Temperature: To show the engine temperature

Warning: over speed alarm, gearshift warning, engine temperature alarm, vehicle trouble warning

Function: stantaneous fuel consumption, average fuel consumption, battery voltage, engine temperature, RPM, current



time





AUTOOL X220  supports the function of shift reminder. It makes your driving safer!



AUTOOL X220  connecting by OBDII interface, displays the date more accurate than by GPS.









Supported Vehicles

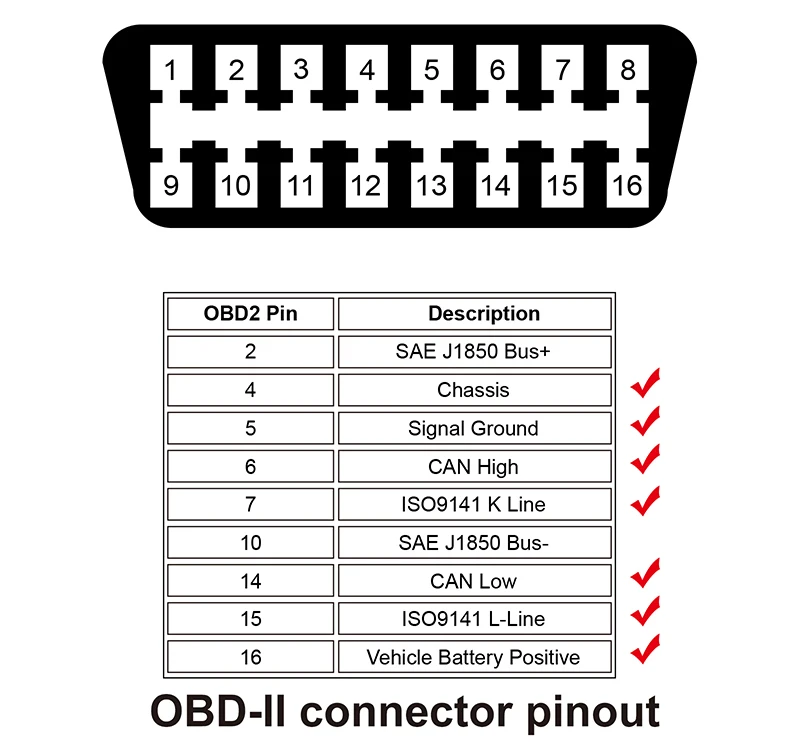

This product is for most vehicles. For some vehicles, if the dashboard or fault warning light is lit, please following the below



instruction, and use needle-nosed pliers to twist extra needles to solve the problem.

ISO15765 Protocol, twist No. 7,15 needles in the OBD cable

ISO14230 Protocol, twist No. 6,14 needles in the OBD cable

ISO9141-2 Protocol, twist No. 6,14 needles in the OBD cable

Specification

Operating voltage: DC8-18V



Operating current: About 300m



Sleep current: 10mA



Speed range: 0-200Km



Protection circuit: Reverse voltage, surge protection

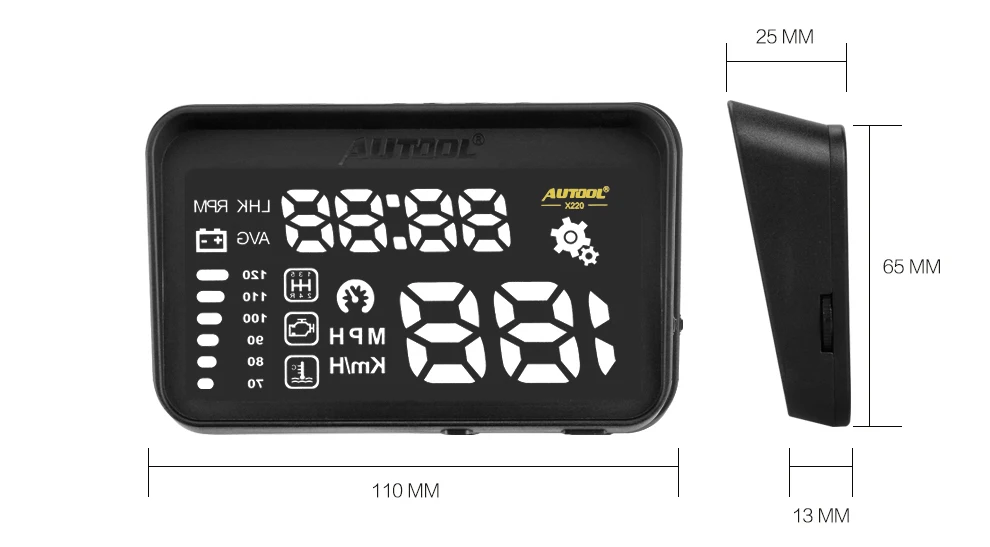

Host volume: 110MM*66MM*7.8MM

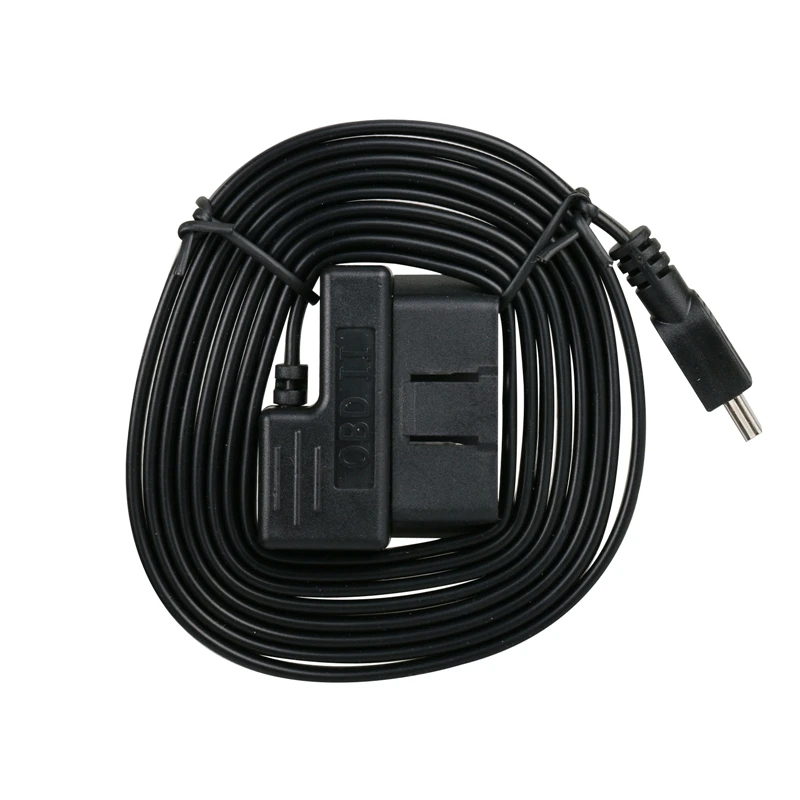

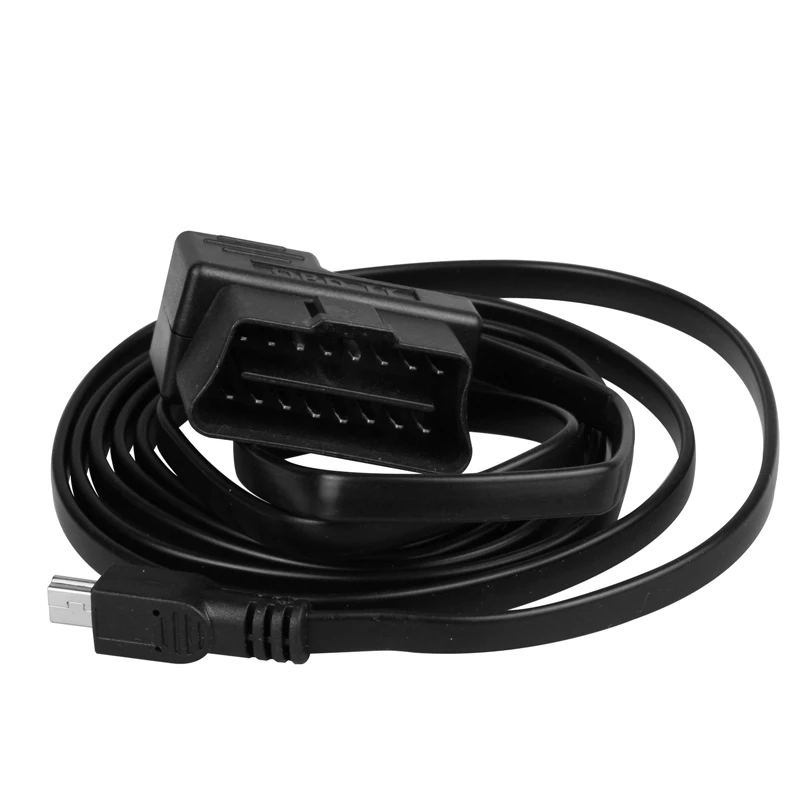

OBD cable: 1.8 meters with Mini USB port



Support protocols: ISO15765 ISO14230（KWP2000） ISO9141-2

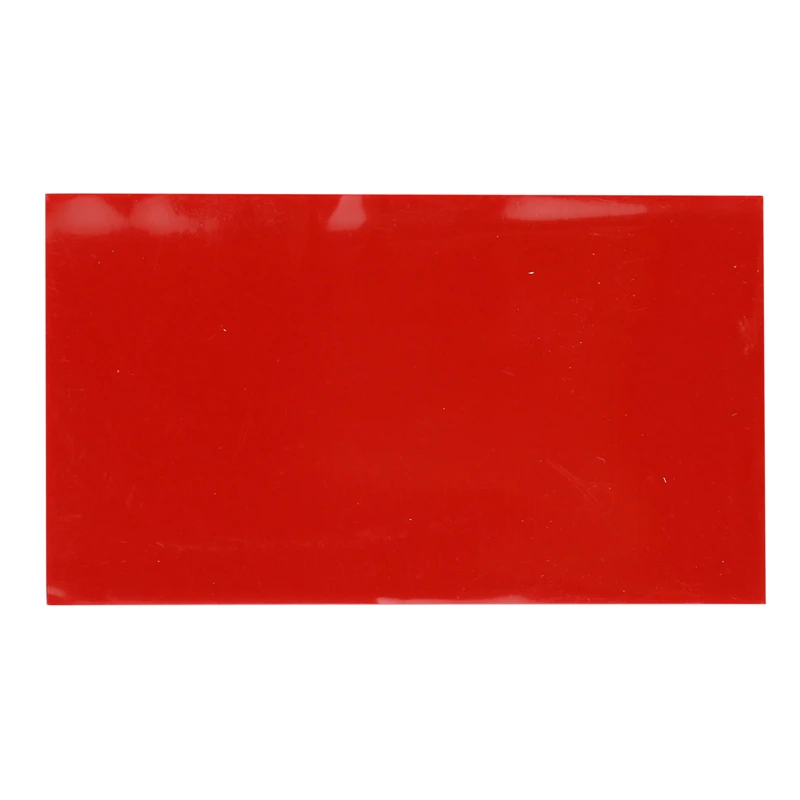

Installation of reflective film



Spray the water with diluted cleaning solution to the installed position of the reflective film, tear the protective layer of the film, fix the

position and scrap off the excessive water.





Function



stantaneous fuel consumption



average fuel consumption



battery voltage



engine temperature



RPM



current time





Safety Warning



Do not use water a soak or use chemical fluid to clean the HUD host.



During normal driving, do not operate the host.

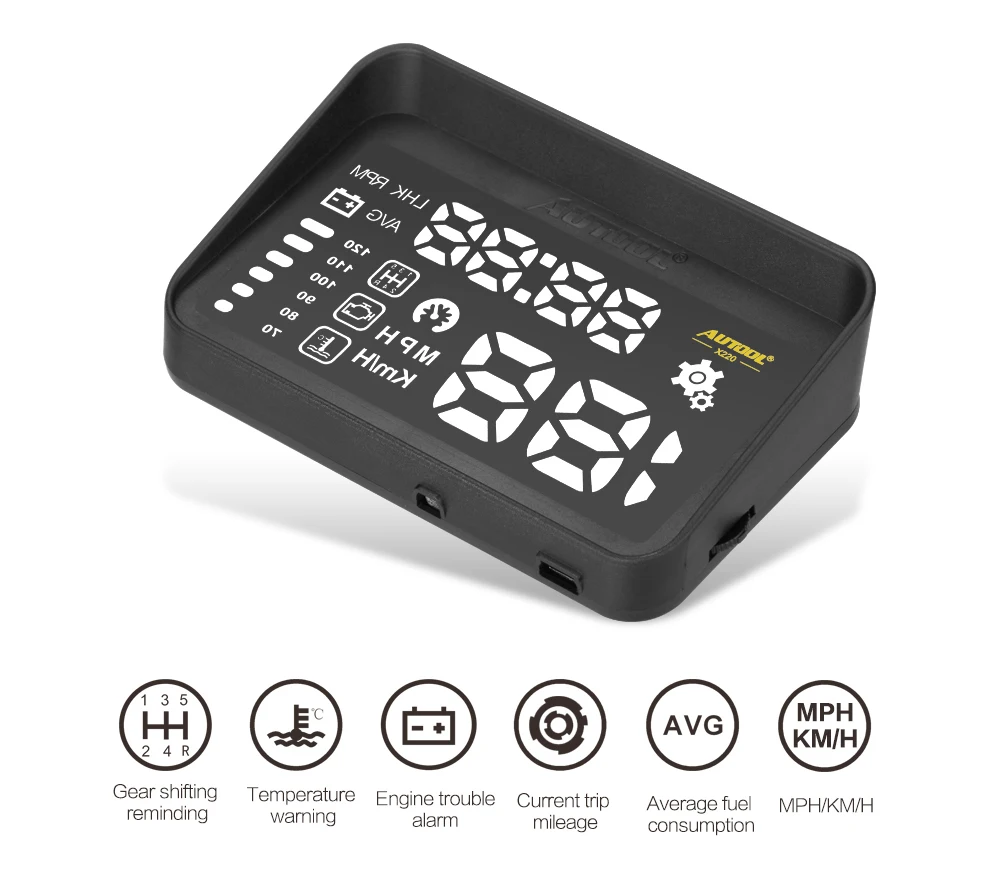

Icon introduction:



RPM：engine speed

LHK: Instantaneous fuel consumption





AVG：average fuel consumption



 Setting



 Battery voltage



 Overspeed alarm-This icon shines with a tick-tick sound alarm, it shows that the current driving speed exceeds a



limitation and needs to be lowered.



MPH: British speed unit icon, Mile per hour



KM/H: Metric speed unit, Kilometer per hour



Package List:



1 * AUTOOL X220 OBD HUD Host



1 * Reflection film



1 * 1.8 meters OBD cable



1 * User’s manual (English)



1 * Certificate

​

1 * Non-slip pad





​









Every product will be tested before sending to you to make sure it works excellently!
