Description
?
?
?
?

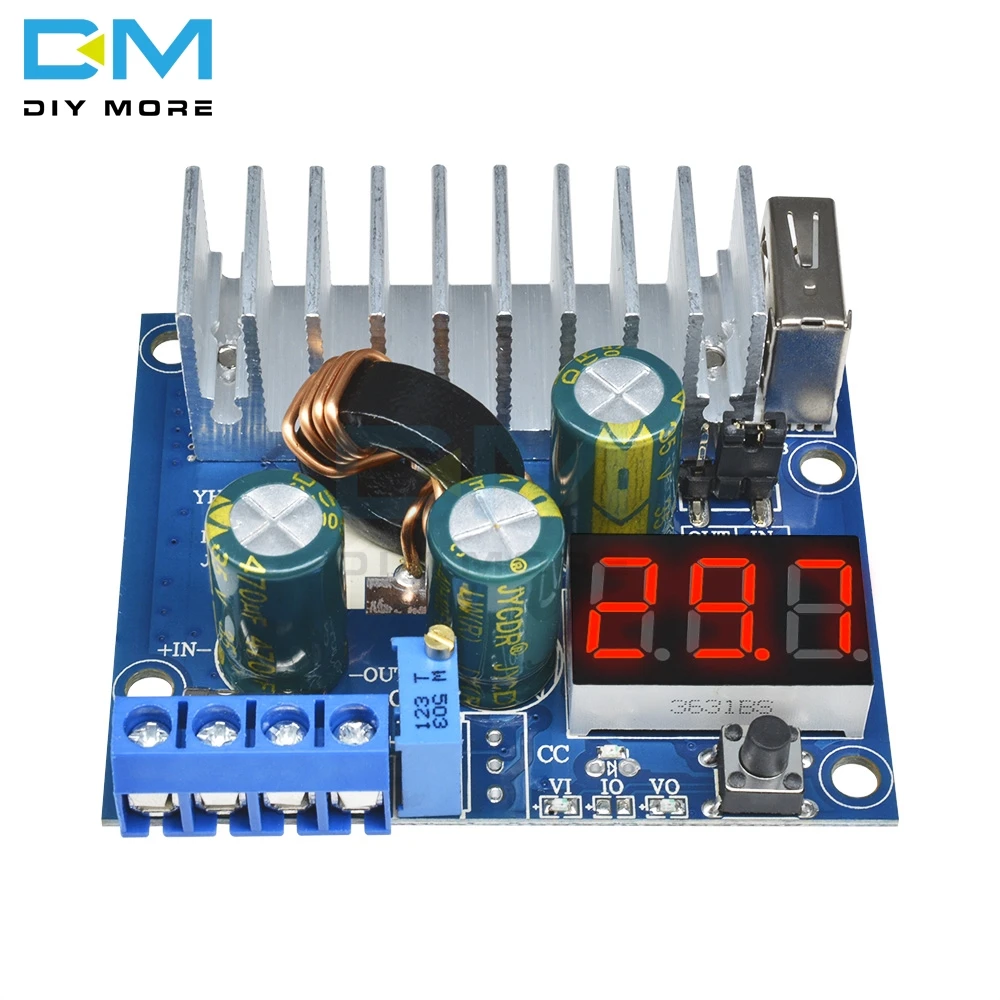

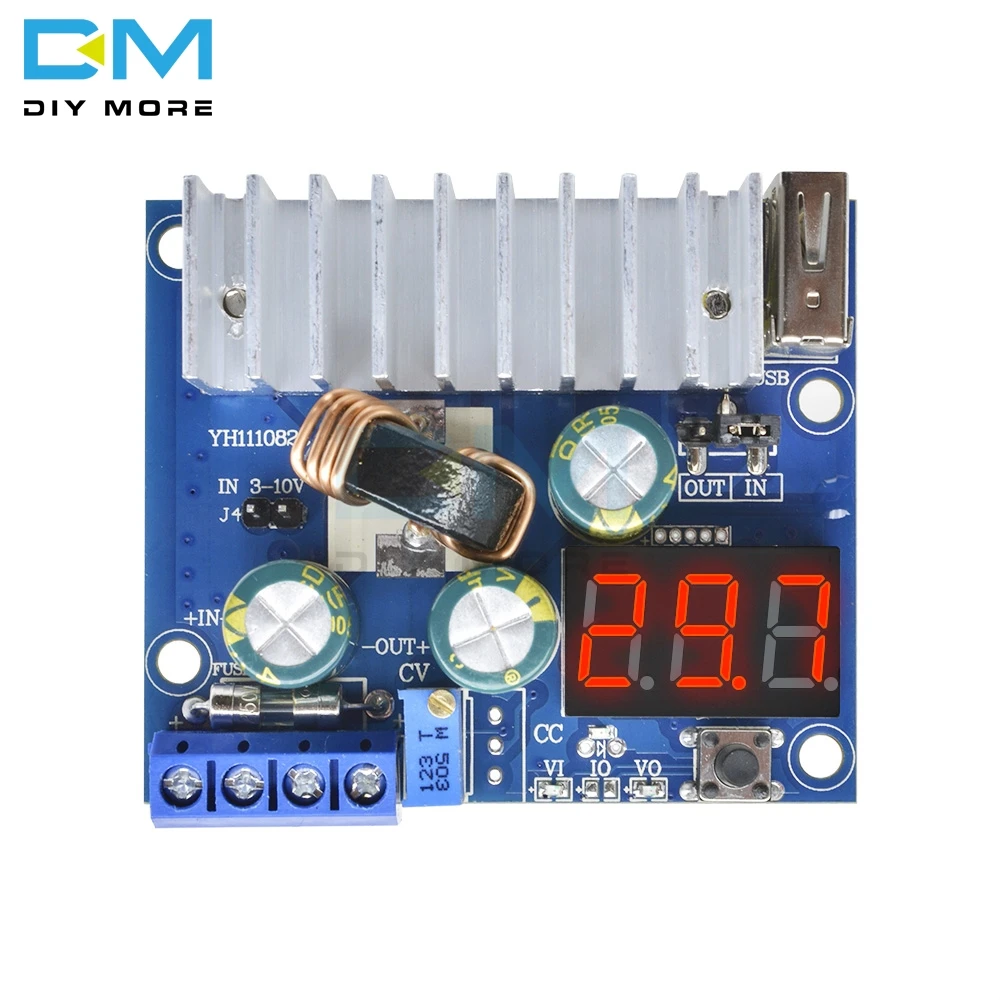

Module Properties: non-isolated step-up module (BOOST)
Input voltage: DC 3 - 35V
Output voltage: DC 3 - 35v (output voltage from the USB = output voltage from the output port )
Input Current: Rated current is 5A,MAX 6A(cooling fan is required)
Operating Temperature: -40¡ãc to +85¡ãc
overcurrent protection : Yes (Input more than 12A, reduce output voltage automatically)
Short circuit protection: Yes
Input Reverse Polarity Protection: None
Size: 60mm*52mm*22mm
NOTE:This can't be used to step down Voltage
?
?
Package Included:
?
1 x DC-DC Converter Step Up Power Supply Module
?
?
?
?
?
?
?
