Dual FSESC4.20 Plus (Based on VESC ) with Anodized Aluminum Heatsink | Diy Build

Dual FSESC4.20 Plus(Pro Switch) base on VESC, it’s upgraded on

Dual FSESC4.20 100A (Based on VESC ) with Anodized Aluminum Heatsink

Upgraded Features:

1. Integrated anti-spark switch function in the PCBA

     2. More thinner for compact in case
         With heatsink: 64 x84x20.5mm(Include Heatsink)

Specs:

• Hardware: V4.20
• ERPM:60000
• Firmware:3.40 (Keep upgrading if FW is updated)
• Current:50A continuous/single, 100A continuous/dual ,burst 150A/single, burst 300A/dual
• Voltage: 8V-60V (Cells: 3-13S LiPo)
• BEC: 5V@1.5A
• BEC type: Internal driver support
• Modes: DC, BLDC, FOC (sinusoidal)
• Timing: Software calibration
• Cutoff Voltage: Programmable
• Frequency: PWM input
• Programming card: No
• Reverse: Yes
• Regenerative braking power: Yes

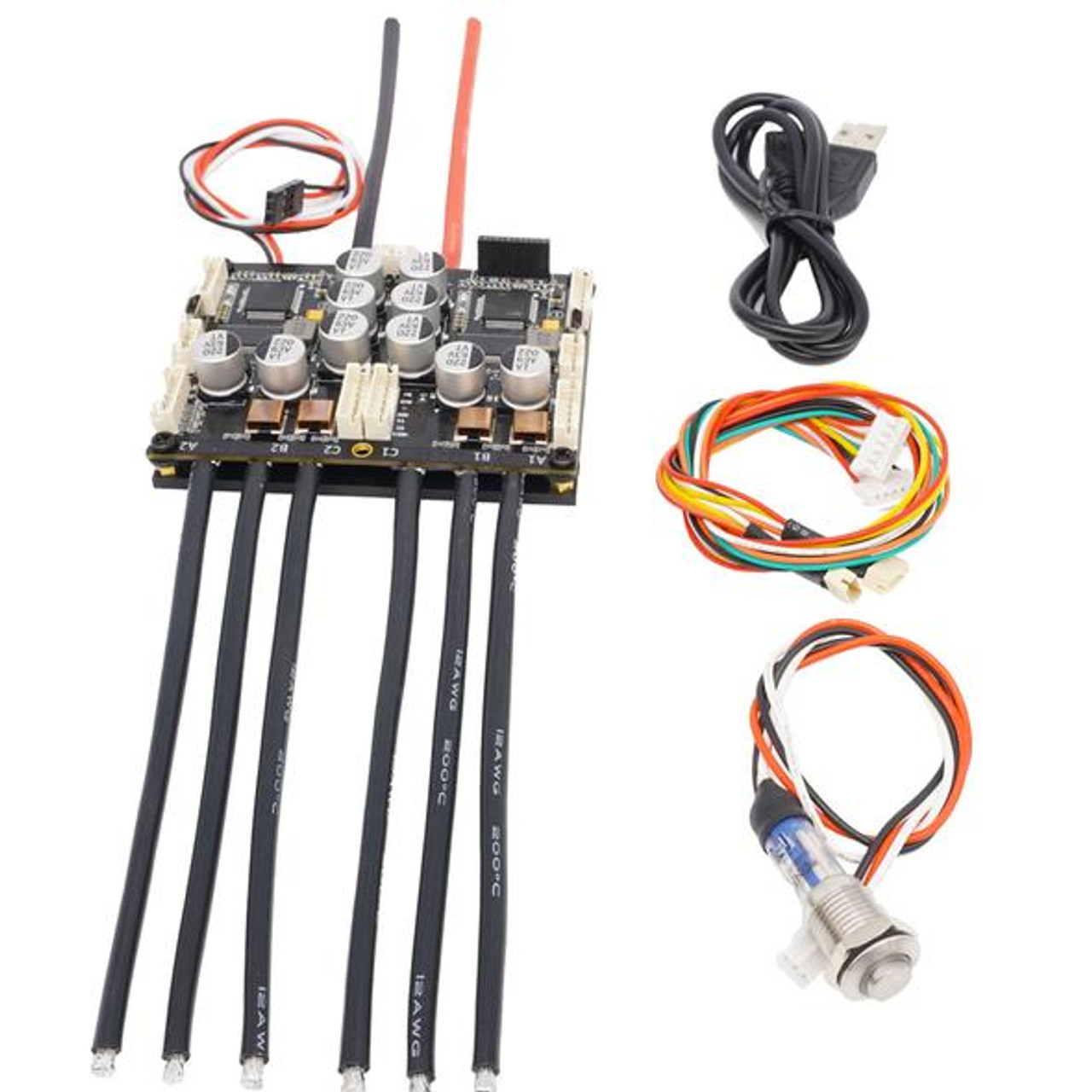

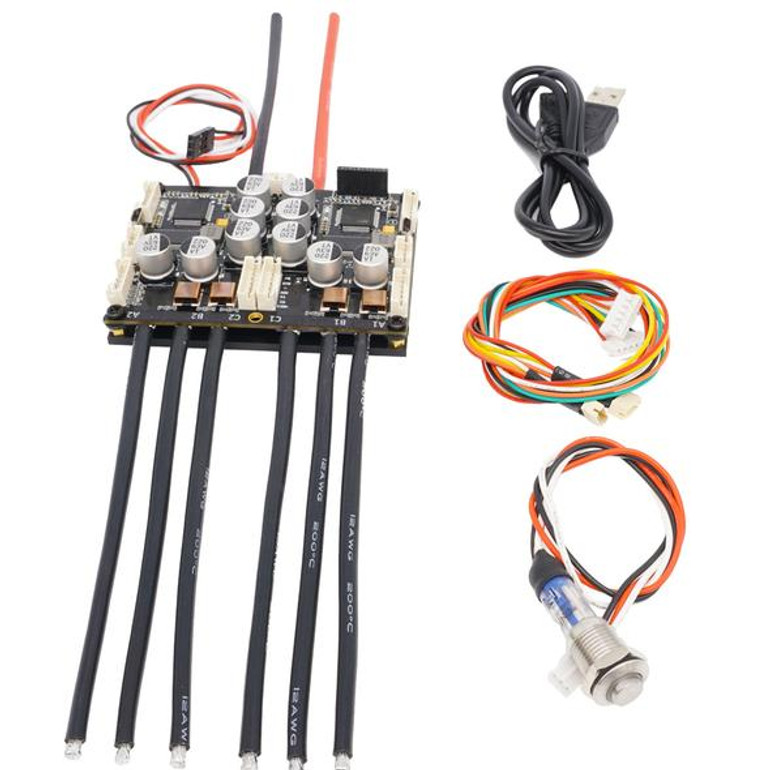

 The shipping package contains:

• 1*Dual FSESC4.20 Plus + Heatsink
• 2*VESC Sensor Wires
• 1*Micro USB
• 1*Manual
• 1*16mm LED button

Design In Details

Diagram

Dual FSESC4.20 Plus Size

Programming Reference Tutorial 1.16
