Eachine E010C Micro FPV Racing Quadcopter With 800TVL 40CH 25MW CMOS Camera 45C Battery w/ Mount Cap VS JJRC H36 E010 RC Drone

No reviews yet Write a Review
6 sold in last 16 hours
Gift wrapping:
Options available
Shipping:
Calculated at Checkout
$89.98

Brand Name: FQ777;Material: Metal,Plastic,Carbon Fiber;Package Includes: Original Box,Batteries,Operating Instructions,Charger,Remote Controller,Camer…

Adding to cart… The item has been added

Eachine E010C Micro FPV Racing Quadcopter With 800TVL 40CH 25MW CMOS Camera 45C Battery w/ Mount Cap VS JJRC H36 E010 RC Drone

$89.98

Eachine E010C Micro FPV Racing Quadcopter With 800TVL 40CH 25MW CMOS Camera 45C Battery w/ Mount Cap VS JJRC H36 E010 RC Drone

$89.98
6 customers are viewing this product
Description
Brand Name: FQ777;Material: Metal,Plastic,Carbon Fiber;Package Includes: Original Box,Batteries,Operating Instructions,Charger,Remote Controller,Camera,USB Cable;Remote Control: Yes;State of Assembly: Ready-to-Go;Remote Distance: 30 meters;Dimensions: 9.5x9.5x5cm;Power Source: Electric;Charging Voltage: As Description;Charging Time: 30~50 mins;Features: Model;Warranty: As Description;Warning: NO;Plugs Type: As Description;Motor: Brush Motor;Controller Battery: 3.7V 45C 150MAH (included);Control Channels: 4 Channels;Action Time: about 3.5 mins;Controller Mode: MODE1,MODE2;Age Range: 8-11 Years,12-15 Years,Grownups,> 8 years old,> 14 years old;Model Number: Eachine E010C;Type: Helicopter;Aerial Photography: No;

Reviews:


         https://youtu.be/i--Mo0d-WY4                                          https://youtu.be/eajNyNrcFgo



           https://youtu.be/s2nB59dLE_E                                     https://youtu.be/DB8JuQWVrHM



Notice:(Important!!)
Only the Mode 2 version (Left Hand Throttle) comes with Camera Cap. (Updated on July 20, 2017)



User Manual,Please Click:Eachine E010c Manual

Description:
Brand name:Eachine E010c
Item name: Micro Racing Quadcopter With 800TVL 40CH 25MW VTX 1/3 "CMOS FPV Camera
Quacopter size:9.5*9.5*5cm
Box size:14*8.6*11cm
Gyro: 6-axis
Frequency: 2.4G
Channel:4CH
Body weight:21.5 g (with battery)
Camera VTX weight:3.8g

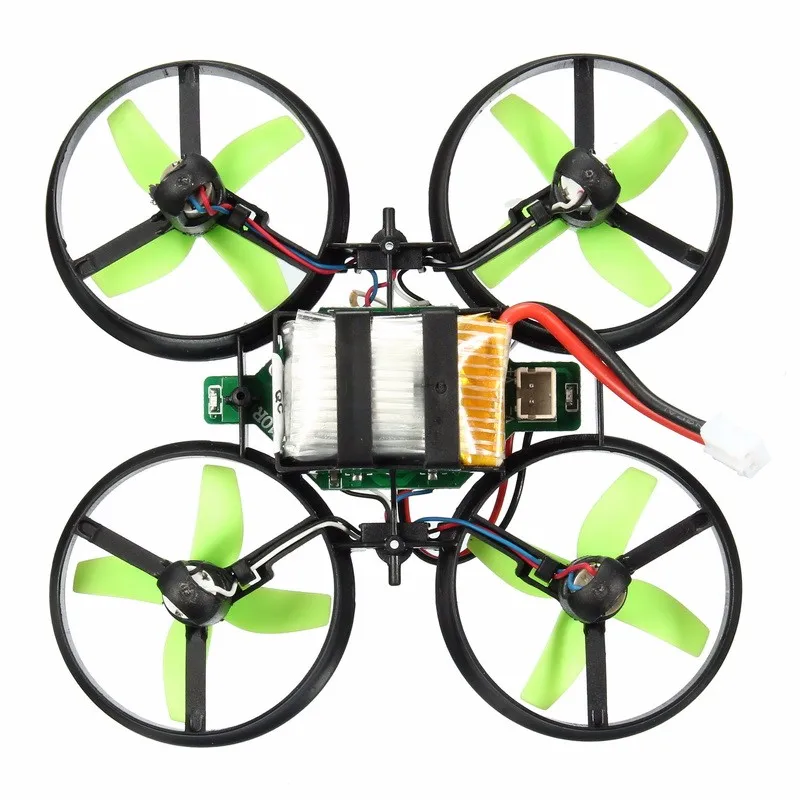

Body battery:3.7V 45C 150MAH (included)
Transmitter battery:2*1.5AA (not included)
Charging time:30~50 mins
Flight time:about 3.5 mins
Remote control distance:30 meters
Color:Black red,Black green

NOTE:The camera needs your own installation.

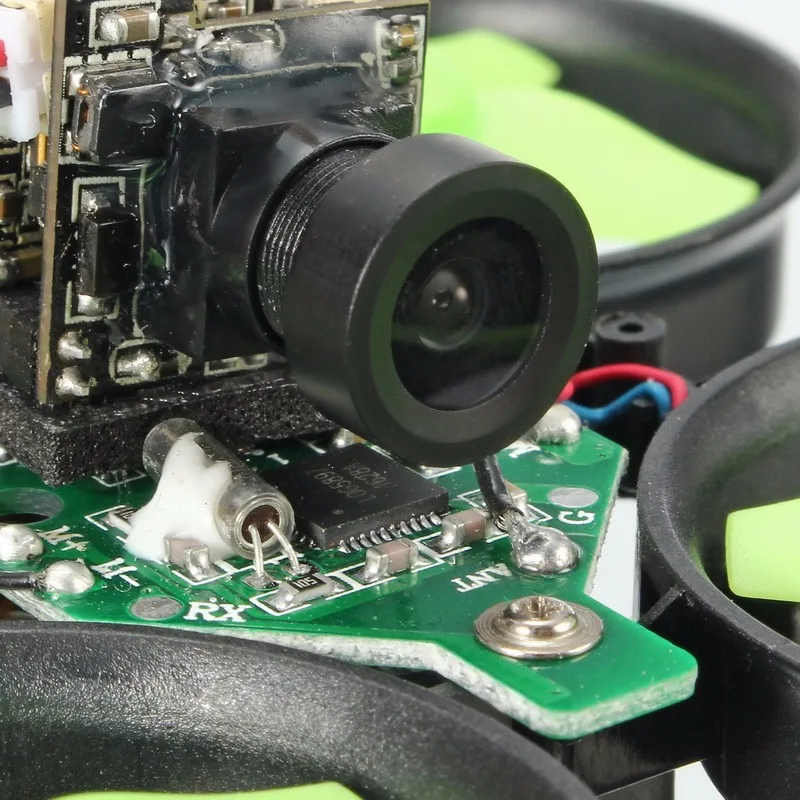

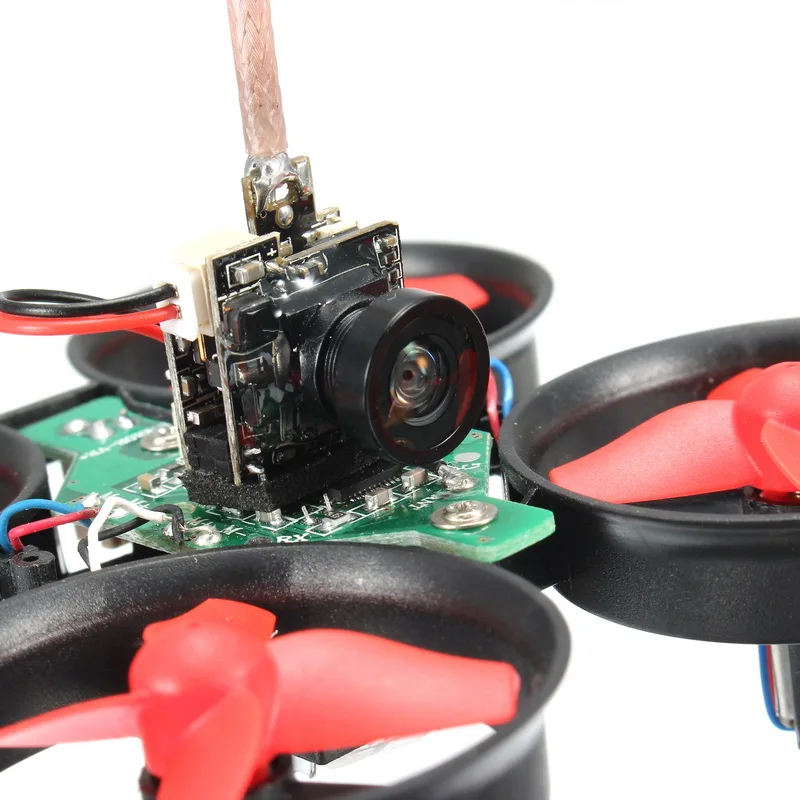

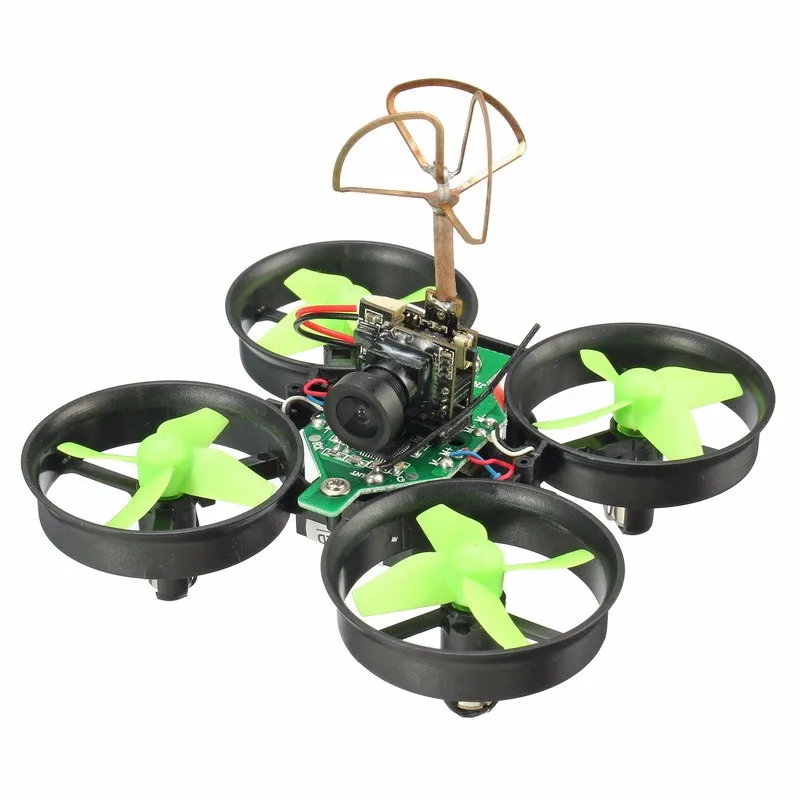

800TVL 40CH 25MW VTX 1/3 "CMOS FPV Camera
Camera: Sensor: 1/3 "CMOS
Clarity:  M7 800TVL camera
View Angle: 150° FOV horizontal view angle
170° DFOV opposite view angle
Signal system:  NTSC/PAL  (one-button switch)
Power consumption: 380mA@ 3.7V
Operating voltage:  3.6-5.5V
Lens mirror diameter: 2.1mm IR coated FOV150(Level)

Transmitter: Supporting video system: NTSC/PAL
Output impedance:  75 Ohm
Operating signal intensity:  23~24dBm
Output power:  25mW
Wireless channel:  40CH
Operating voltage: 3.6V~5.5V
Current:
100mA
Sound carrier: 6.5MHz

Transmit Frequency Table: band- A : 5865,5845,5825,5805,5785,5765,5745,5725
band- B : 5733,5752,5771,5790,5809,5828,5847,5866
band- E : 5705,5685,5665,5645,5885,5905,5925,5945
band- F : 5740,5760,5780,5800,5820,5840,5860,5880
band- R :  5658,5695,5732,5769,5806,5843,5880,5917

Weight: 3.8g

Size: 26x20x18mm (without antenna)

Function: 1.Camerapicture comparable to CCD
2.True wideangle lens 150° FOV Horizontal viewing angle 170° DFOV diagonal    viewing angle
3.Ultra-low power, ultra-lightweight, extremely suitable for smaller aircraft
4.Turn to the R channel,ABEF 4 indicator lights bright,can choose1.2.3.4.5.6.7.8


Features:
- FPV first-person view(indoor racing drone)
- Up / Down / Forward / Backward / Left Turn / Right Turn / Left Fly / Right Fly
Rudder speed( high and slow speed)
- 360° turning, Pattern tumbling
- One key return, easily recalled
- Headless mode ,compass- headless ,flight with remote control
- Lithium battery and USB cable with protection
- Breakthrough conventional wind blades, the flight stability is more powerful

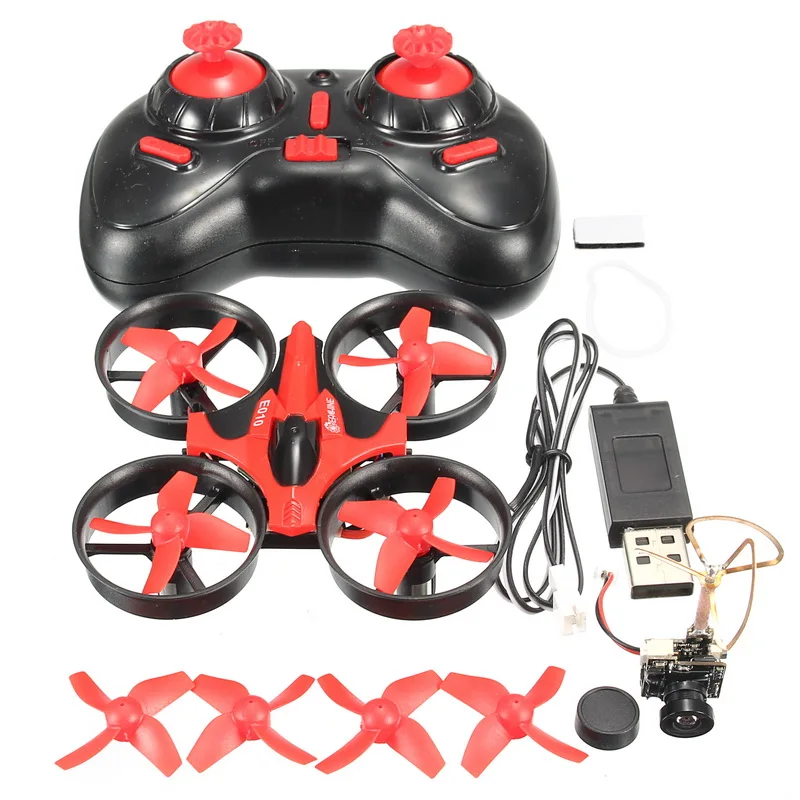

Package included:
1x Quadcopter
1x Transmitter
1x 800TVL + 40CH 25MW VTX 1/3 "CMOS FPV Camera
1x USB Charging cable
1x 3.7V 150MAH 45C battery
4x Blades

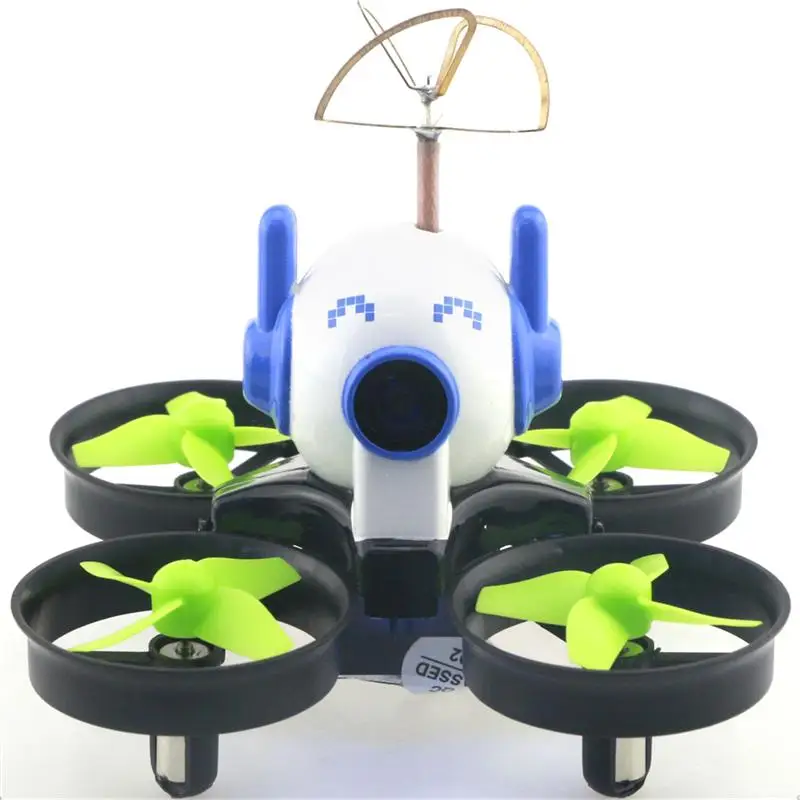

1x Body cover
1x Manual
1x Camera Cap (only the Mode 2 included) Updated on July 20, 2017


































Return:

If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back

Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
