Description
Brand Name: EACHINE;Material: Metal,Plastic,Carbon Fiber;Package Includes: Original Box,Camera;Remote Control: No;State of Assembly: Ready-to-Go;Remote Distance: As Description;Dimensions: 243mmx95mmx262mm;Power Source: Electric;Charging Voltage: As Description;Charging Time: As Description;Warranty: NO;Warning: Careful;Plugs Type: As Description;Motor: Brush Motor;Controller Battery: As Description;Control Channels: 12 Channels & Up;Action Time: As Description;Controller Mode: MODE1,MODE2;Age Range: 8-11 Years,12-15 Years,Grownups,> 14 years old;Model Number: Eachine Wizard TS215;Type: Helicopter;Features: Remote Control;Aerial Photography: No;
Description:
Return:
Description:

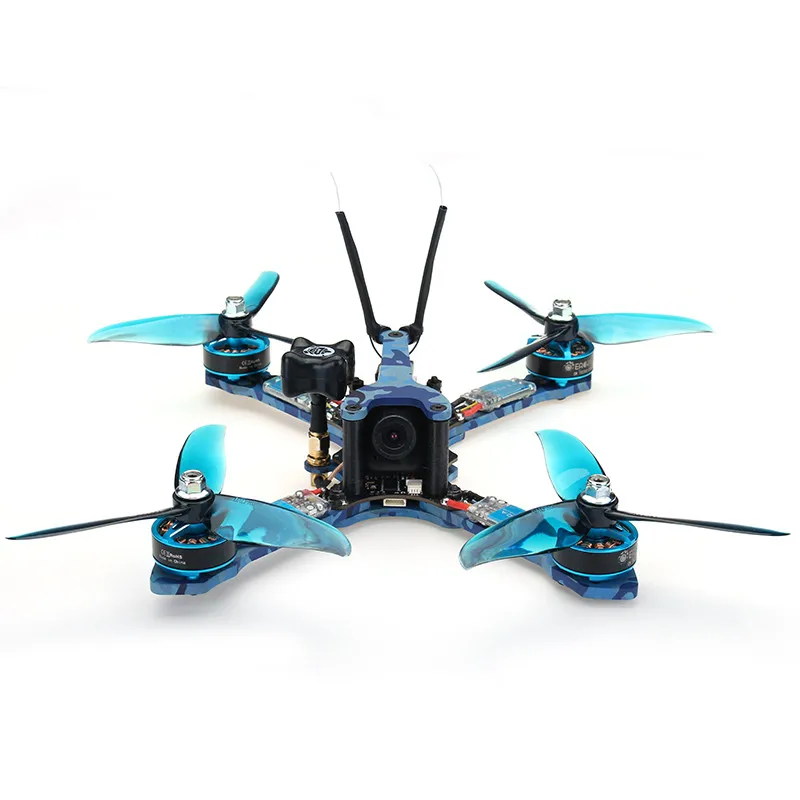

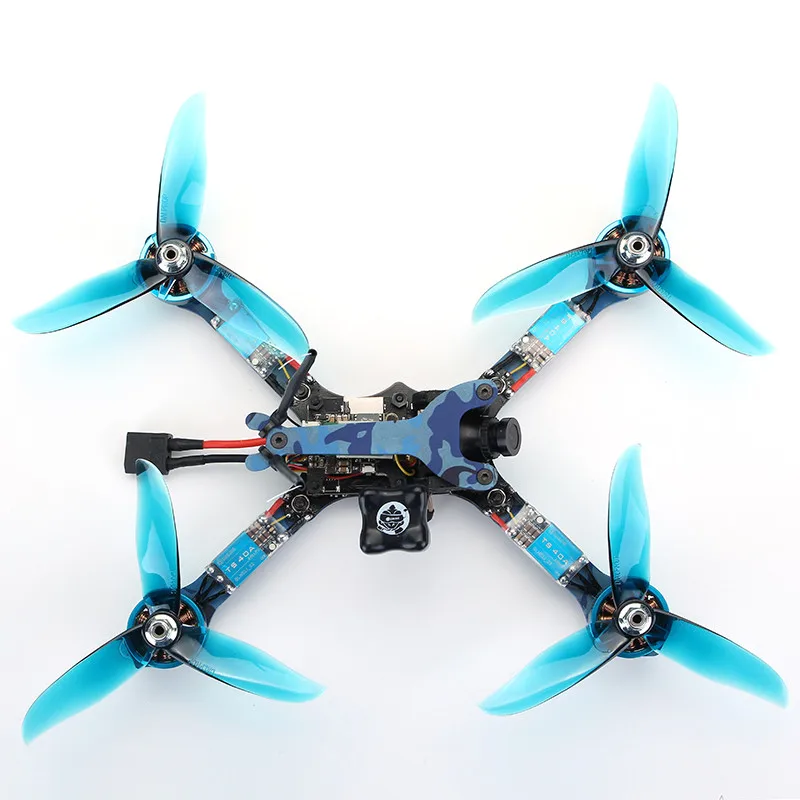

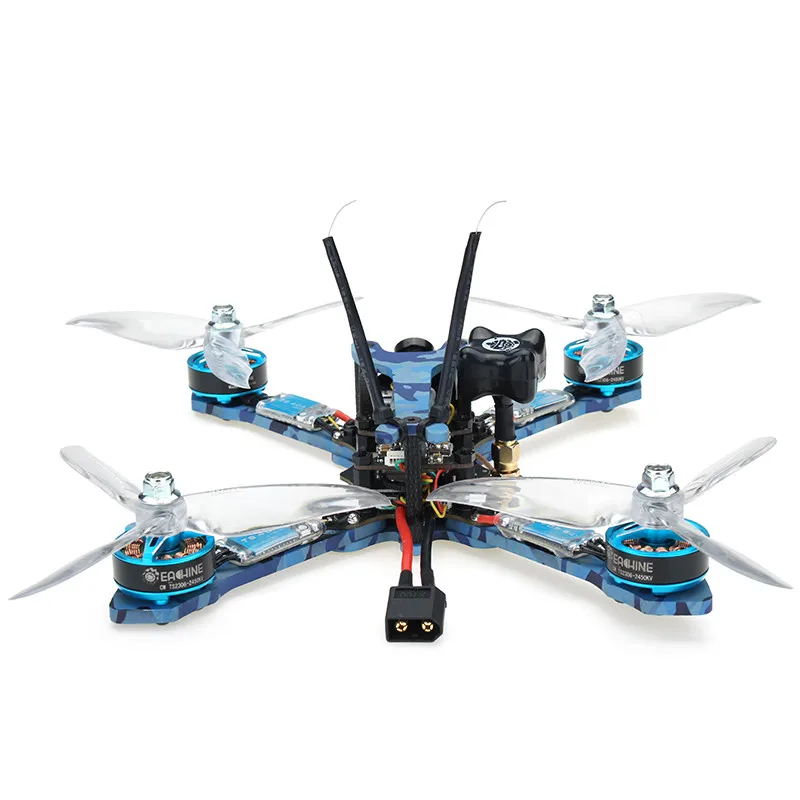

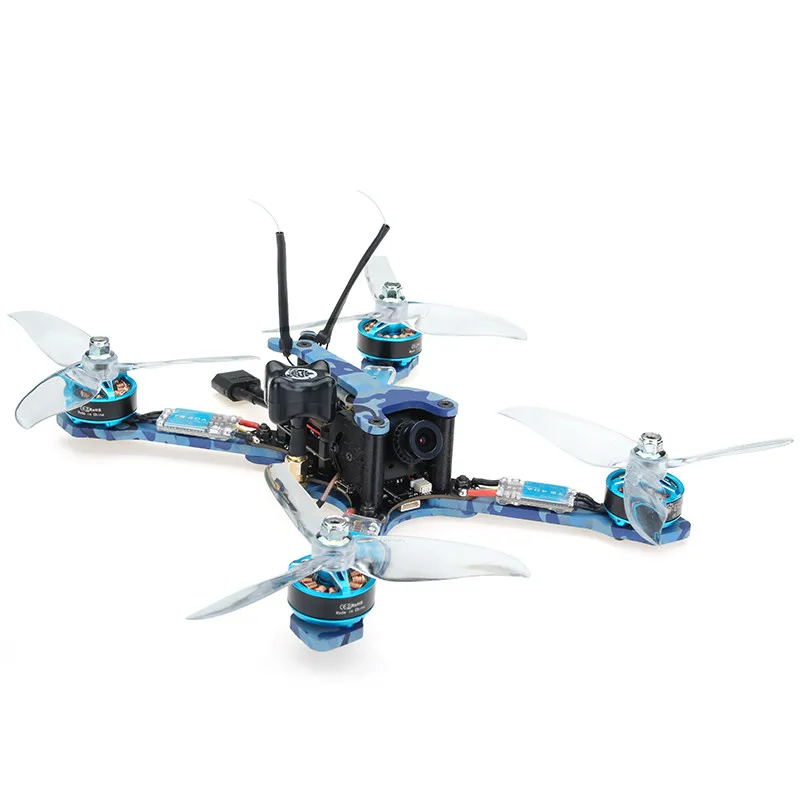

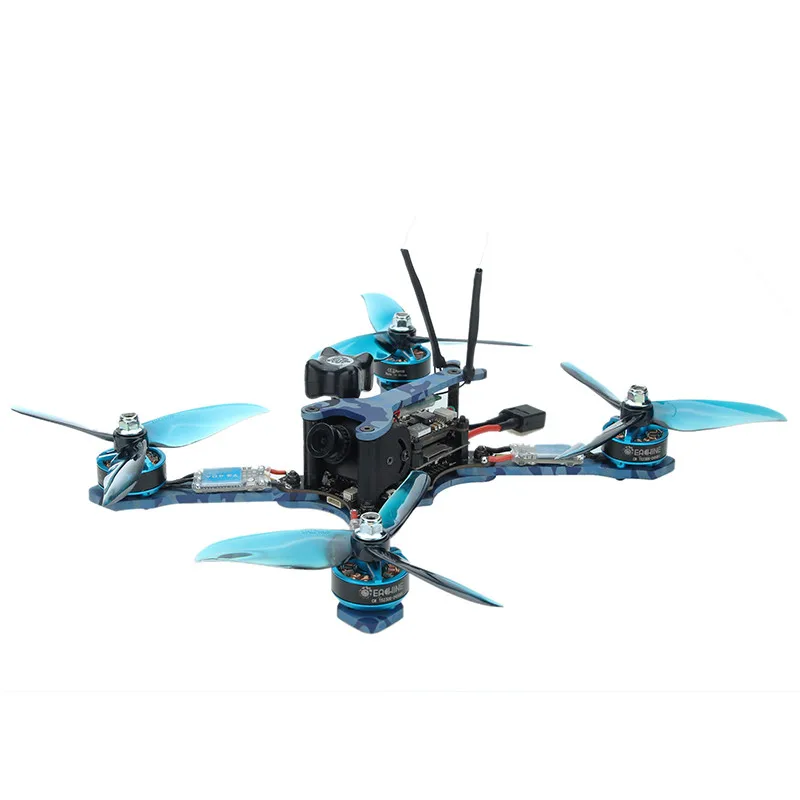

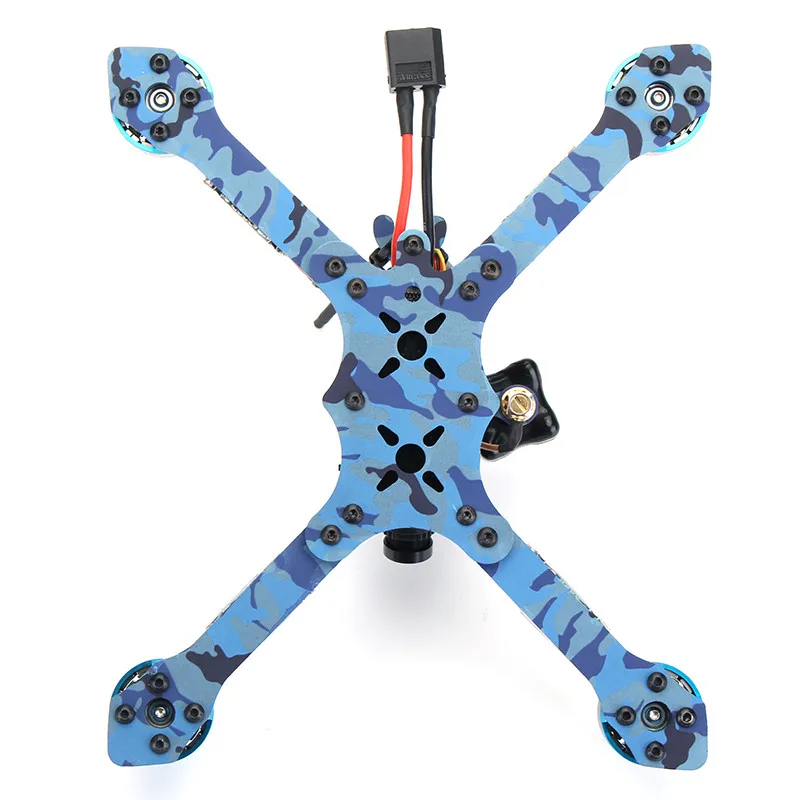

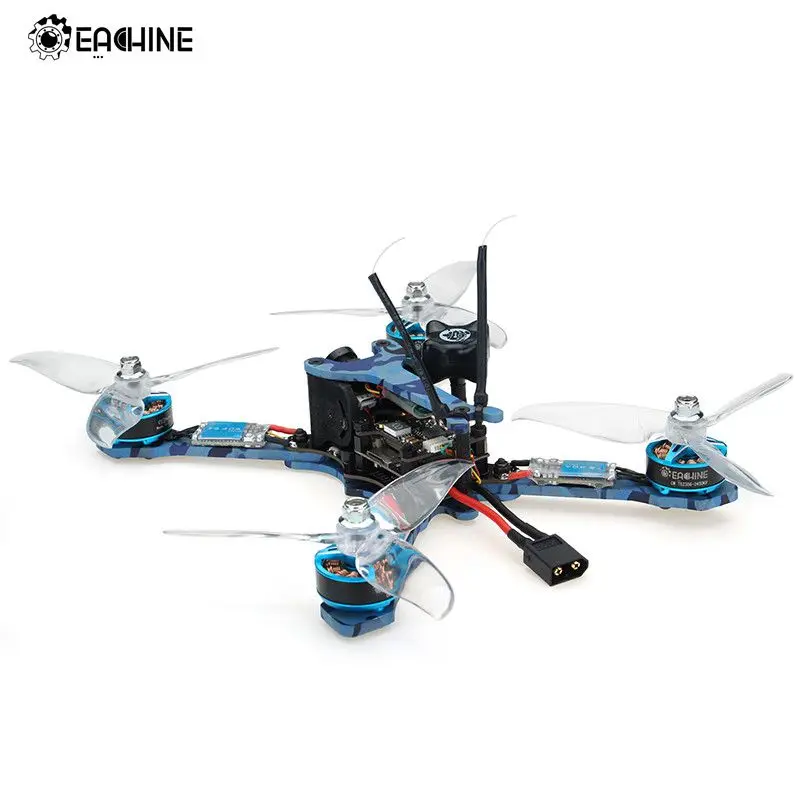

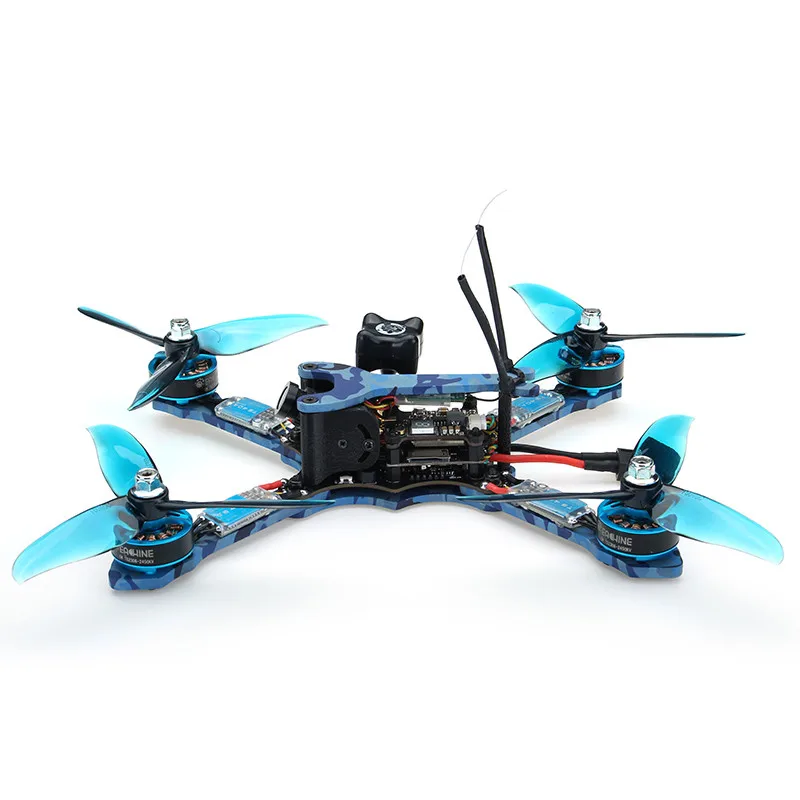

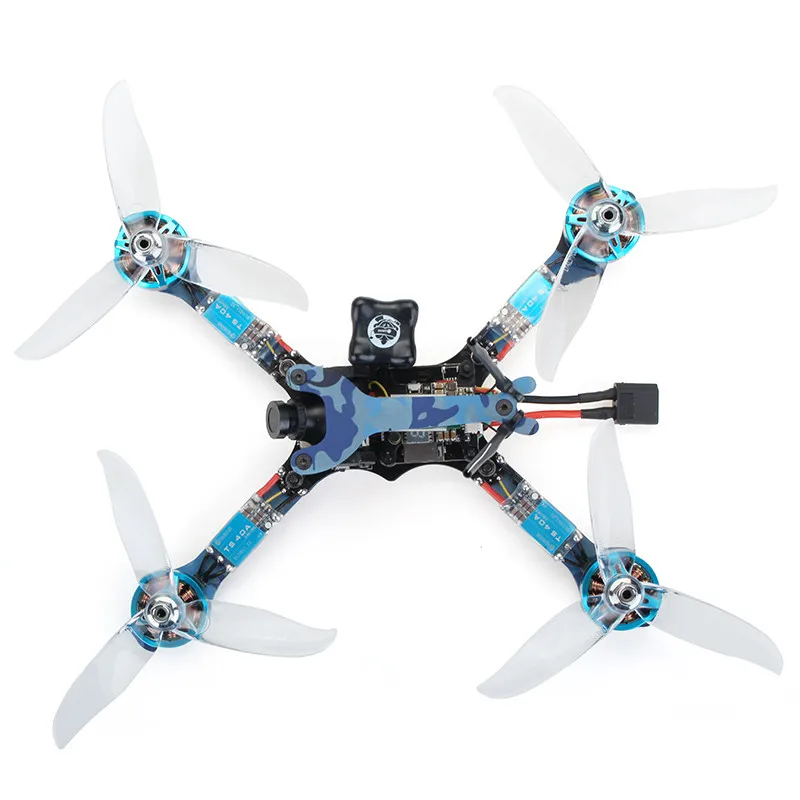

| Eachine Wizard TS215 | Wheelbase: 215mm Material: 3K carbon fiber Frame arm thickness: 4mm Top plate thickness: 3mm Bottom plate thickness: 3mm Artist: hydrographics transfer printing Version: optional BNF version and PNP version Weight: 329g (excluding battery) Package weight: 870g Package size: 243mmx95mmx262mm |
| TS 40A BLHeli_32 Brushless ESC | BEC: no Continuous current: 40A for peak current (5S): 45A Input voltage: 2-6S Current sensor: built in LED indicator onboard, the light colors are adjustable. Supports Dshot1200, Dshot600, Dshot300, Dshot150. |
| TS2306 2450KV Brushless Motor | KV: 2450 NO.OF cell: 2-6S Thrust: 2300g (16V 6040 2-blade prop) Framework: 12N14P Motor shaft: 5mm Weight: 32.5g |
| Customized Omnibus F4 Flight Controller | CPU: f4STM32 F405 SCM Barometer: BMP280 Input voltage: 3-4S Sensor: MPU6000 SPI With SD slot Built in OSD Built in 5V 3A BEC |

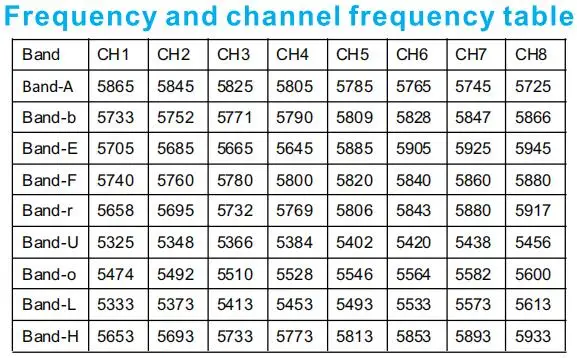

| 5.8G 72CH 25mw / 200mw / 500mw / 800mw VTX | Input voltage: 7-24V Extra features: smart audio, 0.01mW (parameter-adjusting mode) Power supply: 5V camera @ under 0.3A max. Output voltage: 25mW-100mA 200mW-200mA 500mW-260mA 800mW-300mA @ 12V Range: up to 4km with omnidirectional RHCP antennas Antenna connector: MMCX, RP-SMA Port connector: JST, 4pin for dimensions: 30.5x30.5mm Weight: 8.5g (excluding antenna) Material: 128g double copper Adjustable 25mw / 200mw / 500mw / 800mw Supports smart audio (remote parameter adjustment)  |
| 1200TVL CCD Camera | Lens: 2.8mm Size: 25mm*25mm Weight: 9.5g System: PAL Working voltage: DC5-12V Working current: 70mA (low power consumption) |
| Frsky XM+ Micro D16 SBUS Receiver (BNF version only) | Dimension: 21.5*12*3.5mm(L x W x H) Weight: 1.6g Number of channels: up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC) Operating voltage range: 3.7~10V Operating current: 30mA @5V Operating range: full range With RSSI output on board: analog 0~3.3V Firmware upgradeable Compatibility: FrSky D16 mode |
| Storage Board 720P HD DVR | Supports 720p HD recording Supports Max. 32G storage card Suggest to use class10 storage card Save format: mp4.avi file format, n/p system |
| DALPROP Cyclone T5046C 3-blade propeller | Size: 5046 5x4.6 Mounting hole: 5mm Color: blue and transparent white |

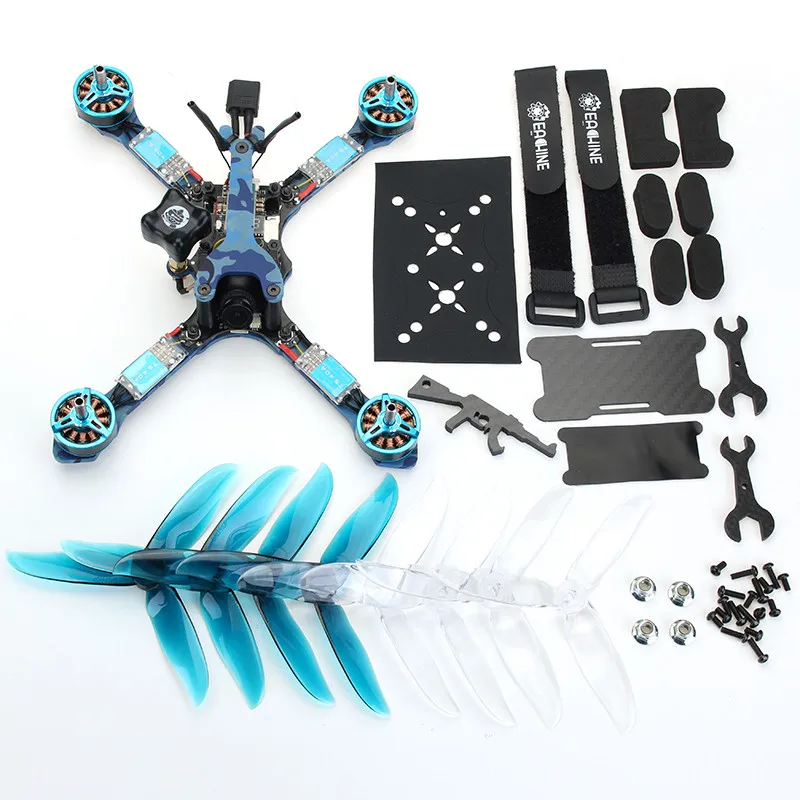

Package included:
1 x Eachine Wizard TS215 frame kit
4 x TS 40A BLHeli_32 Brushless ESC
4 x TS2306 2450KV brushless motor
1 x F4 flight controller
1 x 1200TVL CCD camera
1 x 5.8G 72CH 25mw 200mw 500mw 800mw switchable VTX
2 x DALPROP 3-blade propeller transparent white CW
2 x DALPROP 3-blade propeller transparent white CCW
2 x DALPROP 3-blade propeller blue CW
2 x DALPROP 3-blade propeller blue CCW
1 x Antenna
1 x Battery plate
2 x Battery strap
2 x Carbon fiber wrench
4 x Landing skid gear frame anti-vibration sponge
