Description
Type: Helicopter;Features: Remote Control,Model;Aerial Photography: No;Dimensions: As Description;Age Range: > 14 years old,12-15 Years,Grownups;Material: Plastic,Carbon Fiber,Metal;Control Channels: 12 Channels & Up;Action Time: As Description;Remote Control: No;Package Includes: Original Box,Camera,Operating Instructions;Charging Voltage: As Description;Controller Mode: MODE1,MODE2;Warranty: As Description;Plugs Type: As Description;Warning: NO;Remote Distance: As Description;Controller Battery: As Description;Charging Time: As Description;Power Source: Electric;Brand Name: EACHINE;Model Number: Eachine Wizard X220 ARF;Motor: Brushless Motor;State of Assembly: Almost Ready;
Return:
Note:
This is the ARF version that comes without battery, charger, receiver or remote control.
| Item | Specification | Features |
| Eachine Wizard X220 | Wheelbase: 220mm GMachine arm: 4mm carbon fiber Flying times: 12 minutes Weigh: 364g (without battery) Take off weigh: 535g | Compatible with max 5 inch propeller Compatible with 2206, 2208 motor Can be used with 4S/3S battery With Seft-protection function With direction indicator LED Inclined motor base design, fast speed Removable protection motor base |
| 2205 2300KV Motor | KV : 2300 Propeller : 5 inch | |
| Eachine 20A BLHELI_S ESC | Item name : 20A BLHELI_S ESC Con.Current : 20A peak- Current(10s) : 25A Input Voltage : 2-4S BEC : No Programming : YES Firmware : Blheli_S Weight :7.9g Size(PCB) : 27*12mm | |
| 700TVL Camera | Power supply : 3.6-5.5V (powered off TX) Power consumption : 60mA @5V Imager : 1/3” CMOS, 700TVL Angle : 127° diagonal FOV, 110° horizontal FOV FPV tuned light handling System : PAL Lens : 2.8mm IR coated FOV : 127°diagonal 110°horizontal (ideal for fixed camera) Operation temperature : -20 to 70°C Square : 29 X 29 X 23.5mm Lens extrude (LxDia) : 15mm X 14mm Weight : 12g | |

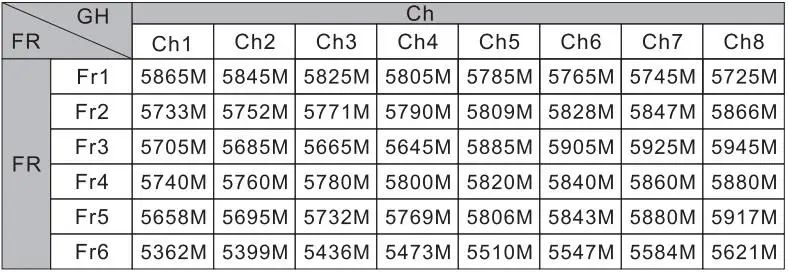

| 5.8G 200mw 48ch Transmitter | Item NO.: TS5823S Modulate : Wideband- FM Modulate Video Format : NTSC/PAL Output Impedance : 50 Ohm Output Power : 23-24dBm Channel:48 CH Operating Voltage : 7V-24V Supply Current : 190mA Operating Temperature : -10~85℃ Video band- Width : 0~8.0 MHz Audio Carrier Frequency : 6.5 MHz Video Input Level : 0.8~1.2 Vp-p Video Input Impedance : 75 Ohm Audio Input Level : 0.5~2.0 Vp-p Audio Input Impedance : 10K Ohm Connector: RP-SMA Female (Inner needle) Antenna connector: RP-SMA Male (Inner hole) Dimension: 40mm x 23mm x 8mm Weight: 7.3g  | |
| Flight controller | F3 6DOF, betaflight 2.9.1 version | |
| Kingkong 5040 3-Blade Propeller | Color: purple Quantity: 10 Pairs Mounting Hole: 5mm Weight: 137g Size: 140*140*65 mm | |
Package included:
1 x Eachine Wizard X220
2 x 2205 KV2300 brushless motor CW
2 x 2205 KV2300 brushless motor CCW
4 x Eachine 20A BLHELI_S ESC
10 x Kingkong 5040 3-blade propeller purple CW
10 x Kingkong 5040 3-blade propeller purple CCW
1 x F3 6DOF flight controller
1 x 700TVL camera
1 x 5.8G 48CH 200mw transmitter
1 x Antenna
1 x Battery strap
2 x Wrench
Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
