HGLTECH HI200 75V 200A ESC Base On Vesc For E-Foil Surfboard Hydrofoil

No reviews yet Write a Review
15 sold in last 35 hours
Gift wrapping:
Options available
Shipping:
Calculated at Checkout
$265.00

HGLTECH HI200 75V 200A ESC Base On Vesc For E-Foil Surfboard Hydrofoil Voltage: 75V maximum (recommended within 16S) Current: 200A continuous, maximum…

Adding to cart… The item has been added

HGLTECH HI200 75V 200A ESC Base On Vesc For E-Foil Surfboard Hydrofoil

$265.00

HGLTECH HI200 75V 200A ESC Base On Vesc For E-Foil Surfboard Hydrofoil

$265.00
6 customers are viewing this product
Description

HGLTECH HI200 75V 200A ESC Base On Vesc For E-Foil Surfboard Hydrofoil

Voltage: 75V maximum (recommended within 16S)

Current: 200A continuous, maximum 300A

Features:

 1、 Based on the design of vesc75300 hardware principle.

 2、Using 18(6) mosfet  IRF7769L (100v 200A each).

 3、Independent gate drive.

 4、Independent power supply.

 5、Independent current sampling.

 6、Active filter circuit makes current sampling more accurate.

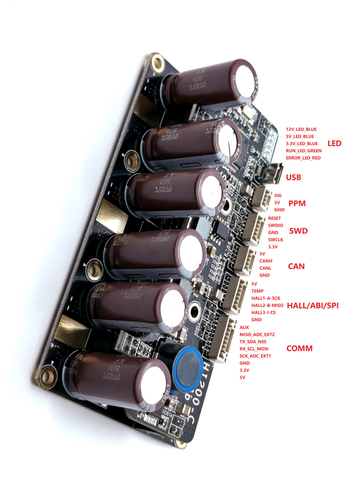

 7、Rich onboard interface.

 8、Independent two-way adc.

 9、Support VESC TOOL official 75300 firmware.

 10、Four-layer board design of size 100x61mm, the circuit is reasonable and stable.



Size:100*61*28

Size: 112*73*36 (Including heat sink)


Battery end plug: 3*XT60 male connector,12#silicone cable, 100mm-Red/100mm-Black

Motor end: 10#silicone cable, 200mm-Black, without plug

Terminal plug type: Gh1.25

Accessories:
GH1.25 corresponding terminal line: 5pcs
XT60 female*3 pcs
MICRO USB data cable * 1 pc

Click to view: HI200 75V 200A ESC with Aluminum Case
