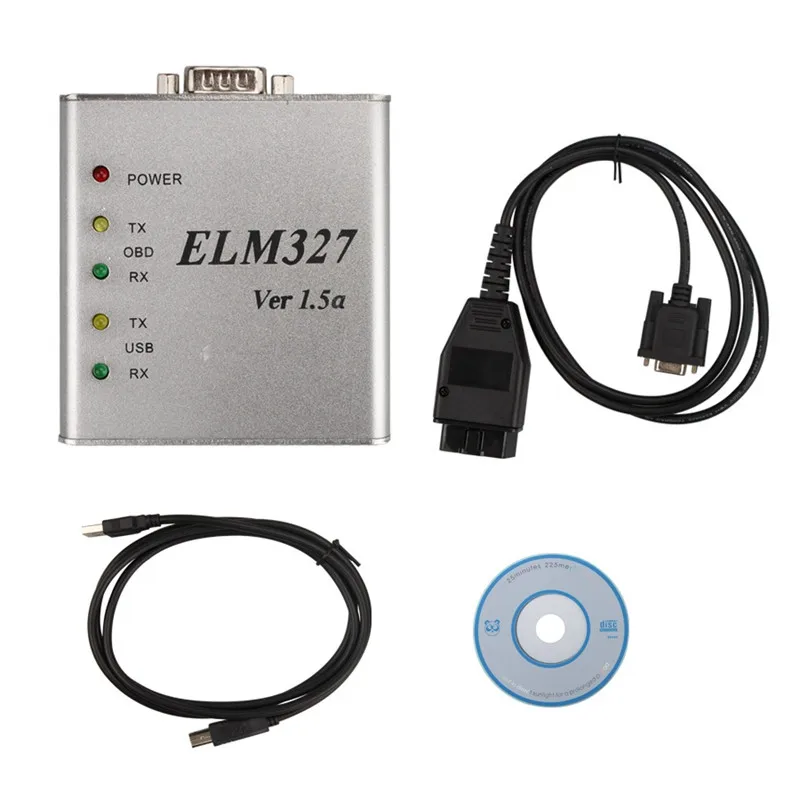

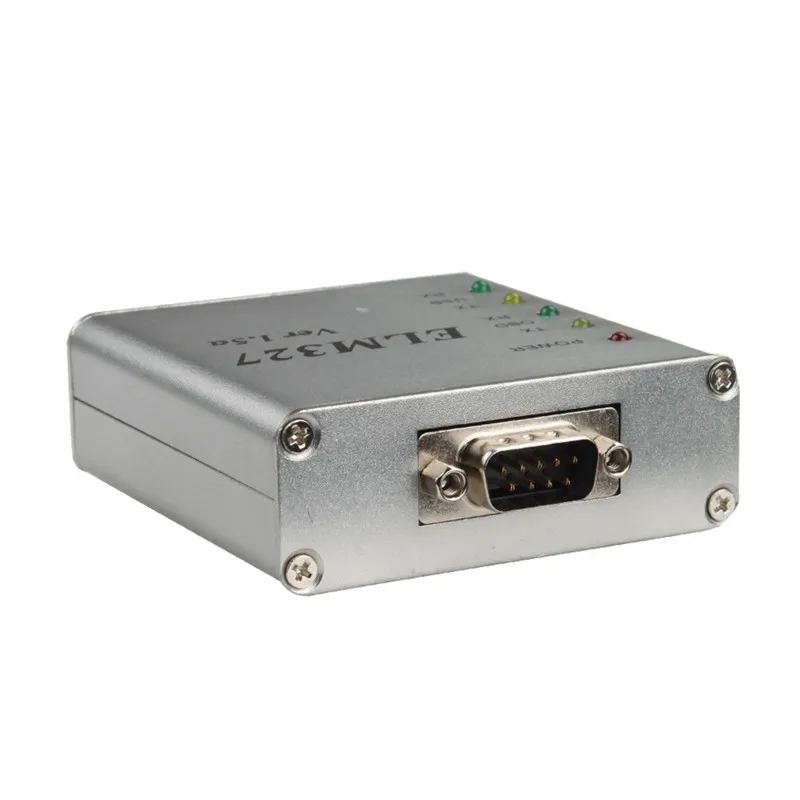

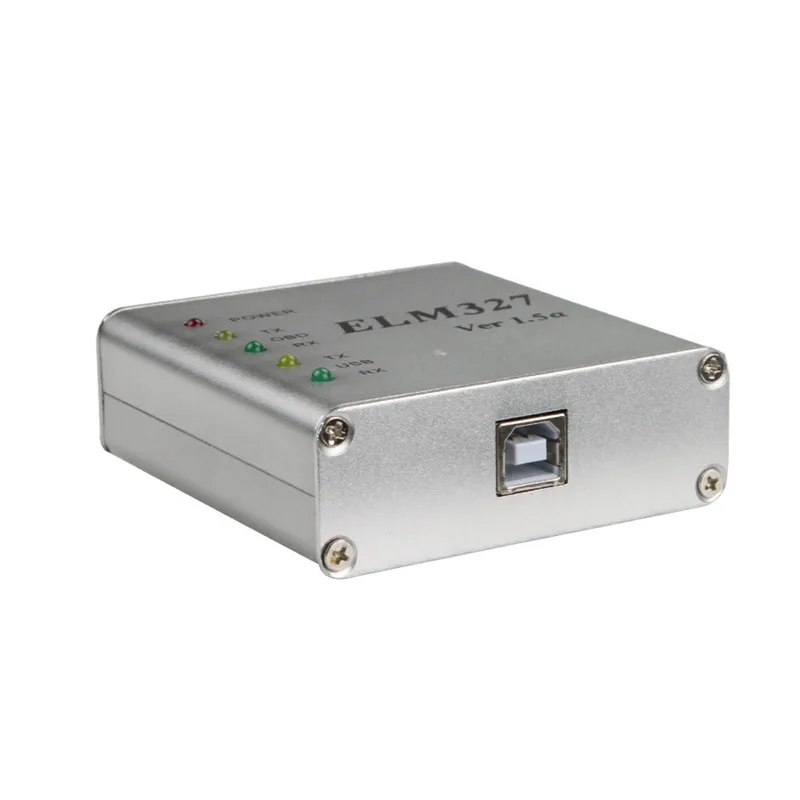

Description of ELM 327 USB Metal:

1.ELM 327 USB V1.5 Metal code reader is the latest PC-based scan tool. It supports all OBD-II protocols and is

dispatched with a number of compatible programs. The processor is an ELM327. The output protocol

(connection to laptop) is USB.

2.Processor: ELM327.

3.OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get

the information from your car's computer.

4.The program is very user-friendly, and easy to learn. It is also very easy to install:

 simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the

program, simply delete the entire contents of the folder where the program resides.

5.The software supports two platforms - DOS and Windows.

Functions of ELM 327 USB Metal:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000

generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

Engine RPM;Calculated Load Value;Coolant Temperature;Fuel System Status;Vehicle Speed;Short Term Fuel

Trim;Long Term Fuel Trim;Intake Manifold Pressure;Timing Advance;Intake Air Temperature;Air Flow

Rate;Absolute Throttle Position;Oxygen sensor voltages/associated short term fuel trims;Fuel System

status;Fuel Pressure;Many others..

4.Upcoming Function:

 Data graphing and logging;Freeze Frame data;Continuous and Non-Continuous Oxygen Sensor test results

Specifications of ELM 327 USB Metal:

1.OBD-II Protocols:

ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;J1850 VPW;J1850 PWM

2.Output protocol:RS232

Baud rate:9600 or 38400

Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power

Operating voltage:12V, internal protection from short circuits/overvoltages

Nominal idle current:45 mA

3.Free software:

1)for GM Mode 22 Scan Tool by Terry

2)OBD Gauge for PalmOS and Pocket PC by Dana Peters

3)OBD Logger by Jonathan Senkerik

4)OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)

5)OBD2 Scantool by Ivan Andrewjeski

6)OBDII for ELM322 by David Huffman

7)pyOBD by Donour Sizemore for MacOSX and Linux

8)RDDTC by Pete Calinski

9)Real Scan by Brent Harris

10)ScanTest for Pocket PC by Ivan Ganev aka a-ser

11)wOBD by WDT

4.Aavailable cars:

Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001)
