0.42 Inch0.91 Inch White Product Parameters:Working voltage: 3.3VResolution: 128*32Driver chip: SSD1306 Pin  1.3 Inch White Resolution: 128*64 (same r…

Adding to cart… The item has been added

LCD OLED Display 0.42 0.91 0.96 1.3 Inch Blue White LCD Screen Display Module 0.42'' 0.91'' 0.96'' 1.3'' OLED Module For Arduino

$0.90
Choose Options
✕

LCD OLED Display 0.42 0.91 0.96 1.3 Inch Blue White LCD Screen Display Module 0.42'' 0.91'' 0.96'' 1.3'' OLED Module For Arduino

$0.90
6 customers are viewing this product
Description



0.42 Inch

123

4578910

0.91 Inch White



Product Parameters:
  • Working voltage: 3.3V
  • Resolution: 128*32
  • Driver chip: SSD1306

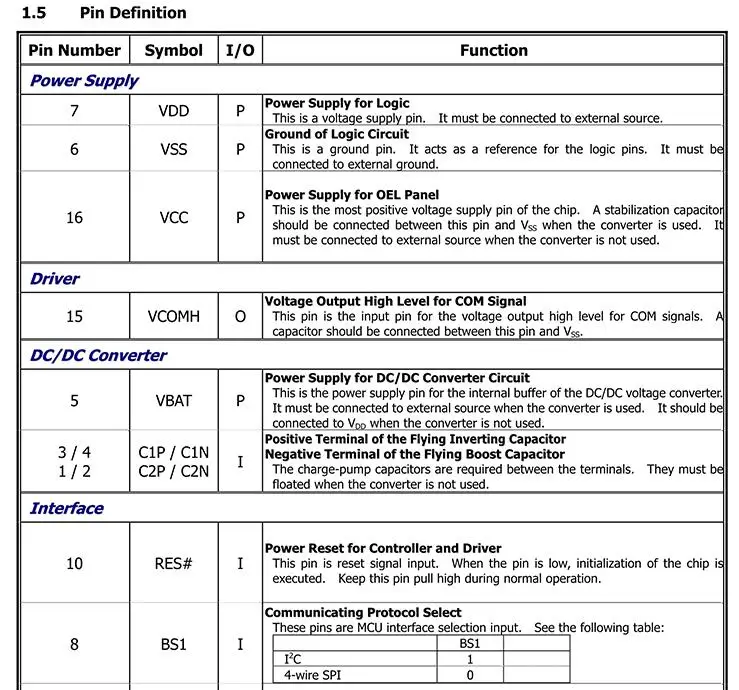

Pin

1

1.3 Inch White



  • Resolution: 128*64 (same resolution as 12864LCD, but the OLED screen has more pixels per unit area)
  • Ultra wide viewing angle: > 160°
  • Wide power supply range: DC 3.3-5V
  • Operating temperature range: -40~+70°C
  • Communication mode: IIC, 3-wire SPI, 4-wire SPI, 8-bit 68xx parallel, 8-bit 80xx parallel
  • Brightness and contrast can be controlled by program instructions
  • Service life: no less than 16,000 hours
  • Driver chip: SH1106

0.96 Inch
  • Resolution: 128*64
  • Ultra wide viewing angle: > 160°
  • Ultra low power consumption: 0.06W in normal display
  • Wide power supply range: DC 3.3-5V
  • Operating temperature range: -40~+85°C
  • Communication mode: IIC, 3-wire SPI, 4-wire SPI, 8-bit 68xx parallel, 8-bit 80xx parallel
  • Brightness and contrast can be controlled by program instructions
  • Service life: no less than 16,000 hours
  • Driver chip: SSD1306
