Item Description
BNF version comes without remote controller.
Only RTF version comes with remote controller.
Only RTF version comes with remote controller.
Description:
Brand name: SPC Maker
Product model: SPC 110VT
Wheelbase: 110mm
Size: 88mm*104mm*34mm
Weight: 84g (without battery)
Flight weight: 116g(Include battery
Material: 3K carbon fiber
Motor: 1106 5500KV brushless motor
ESC: 20A Mini 4 in 1 BLheli_s ESC (2-4S LiPo)
Propeller: 2.5 inches 3-blades propeller
Receiver: original Frsky XM+, compatible DSMX/ Flysky
Camera: RunCam Micro Swift 2 1/3 "600TVL FPV camera 2.3mm lens CCD
VTX: 5.8g 25MW-100MW 40CH Video transmitter
Flight controller: Omnibus F4
OSD: Betaflight OSD
Firmware of flight controller: betaflight_3.2.0_OMNIBUS F4
Flight time: 3 minutes
Rear LED Ready( LED_Strip function)
Buzzer Ready
Battery: 11.1V 350mAh 60C lipo battery
VX86-2 20A 4 IN 1 DSHOT ESC 2-4S Lipo
Continuous Current: 20A
Burst Current: 25A≥10S
Input Voltage: 2S-4S LiPO
BEC: No
Dimension: 29x31mm
Weight: 4.9g
Firmware: BLHeLi_S
Input signal: Dshot150 & Dshot300 & Dshot600(PWM are not recommended)
VX86-3 25mW/100mW 5.8G 40CH 5645-5945MHz VTX
Input voltage: 5-6V
Power: 25mW/100mW can be select
Operation Current: 310mA 5.5V 25mW / 350mA 5.5V 100mW
Frequency range: 5.8G 40CH 5645-5945MHz
Dimension: 17x22mm
Weight: 2.5g
Independent external power amplifier for better signals.
RunCam Micro Swift 2
Image Sensor: 1/3" Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.3mm Lens(M8) FOV145°
Signal System: NTSC
S/N Ratio: >60dB (AGC OFF)
Electronic Shutter Speed: 1/60~100,000
Auto Gain Control (AGC): Yes
Back Light Compensation (BLC): Yes
Min. Illumination: 0.01Lux1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color/Auto/B&W
Power: DC 5-36V
Net Weight: 5.6g
Dimension: 19mm*19mm*19mm
Compatible:
1. DS M2 Receiver Support Spec trum/JR(DS M 2 protocol) DEVO10/DEVO 7E(with deviation firmware).
2. Frsky Receiver Support FRSKY taranis X9D/X9D PLUS(D16 mode), and XJT (D16 Mode), DJT DFT DHT Transmitter.
3. Flysky Receiver Support FS-I6FS-I6X.FS-I6S.FS-TM8.FS-TM10.FS-I10 and other second-generation AFHDS 2A protocol remote control.
Package included:
1 x SPC Maker 110VT frame
1 x Omnibus F4
1 x Receiver
4 x 1106 5500KV brushless motor
1 x 20A Mini 4 in 1 BLheli_s ESC
4 x 2.5 inches 3-blades propeller CW
4 x 2.5 inches 3-blades propeller CCW
1 x RunCam Micro Swift 2 2.3mm CCD camera
1 x 5.8G 25mW-100mW 40CH VTX
2 x 11.1V 350mAh 30C lipo battery (comes without charger)
1 x WS2812 LED Board
4 x 3*100mm nylonband
2 x 12mm*150mm magicband
2 x 15mm*50mm back to back with 3Mrubber magic belt
1 x XT60 female plug to XT30 male plug converter

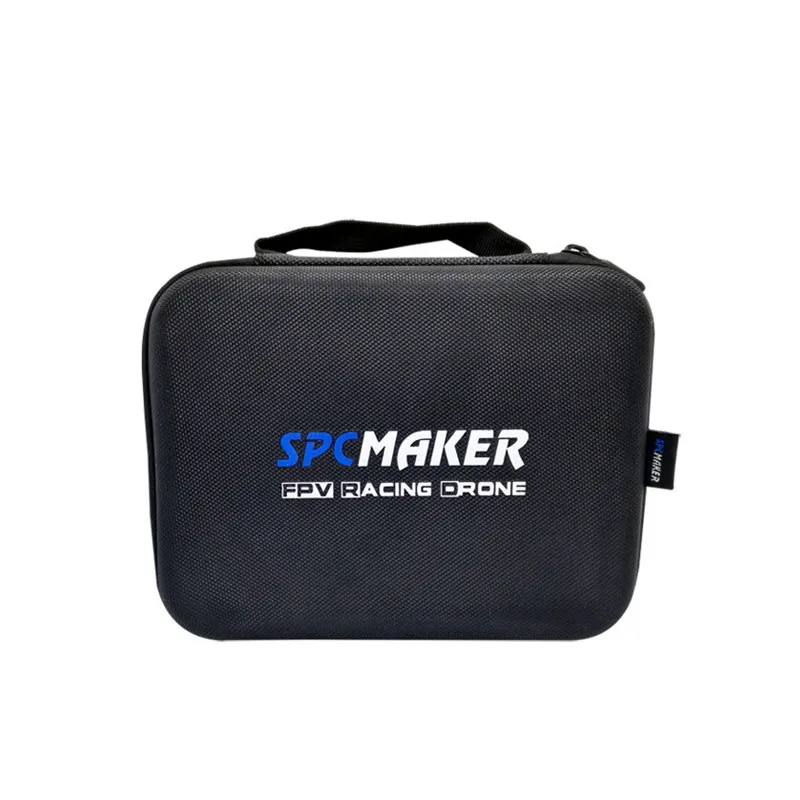

1 x carrying case
1 x carrying case
