Specification:
Brand name: SPC Maker
Item name: SPC 110NG
Wheelbase: 110mm
Material: 3k full carbon fiber
Bottom plate thickness: 3.0 mm
Top plate thickness: 2mm
Priduct size: 130mm*145mm*30mm
Weight: 100g (without battery)
Take off weight: 150g (with battery)
Brushless motor: SPC Maker S1106 8000KV motor
Flight controller: Omnibus F4 Nano-
ESC: 28A Mini 4 in 1 BLheli_s ESC (2-4S LiPo)
Receiver: DSMX/Frsky/Flysky/futaba receiver (option)
Propeller: 50mm 4-blades propeller
Camera: RunCam Micro Swift 2 1/3 "600TVL ,NTSC/ FPV camera 2.3.0 mm lens CCD camera
VTX: 5.8g 25MW-200MW 48CH VTX
Flight time: about 4mins
Battery: 11.1V 500mah 30C lipo battery
Compatible Receiver:
1.DSM2- Receiver Support Spectrum/JR(DSM2- protocol) DEVO10/DEVO 7E(with deviation firmware).
2.Frsky Receiver Support FRSKY taranis X9D/X9D PLUS(D16 mode),and XJT (D16 Mode),DJT DFT DHT Transmitter.
3.Flysky Receiver Support FS-I6FS-I6X.FS-I6S.FS-TM8.FS-TM10.FS-I10 and other second-generation AFHDS 2A protocol remote control
4.Futaba Receiver Support TM7,TM8, TM10, TM14 T6EX-2.4G,7C-2.4G,T8FG,T10CG ,T12FG.T14SG.
Parameters

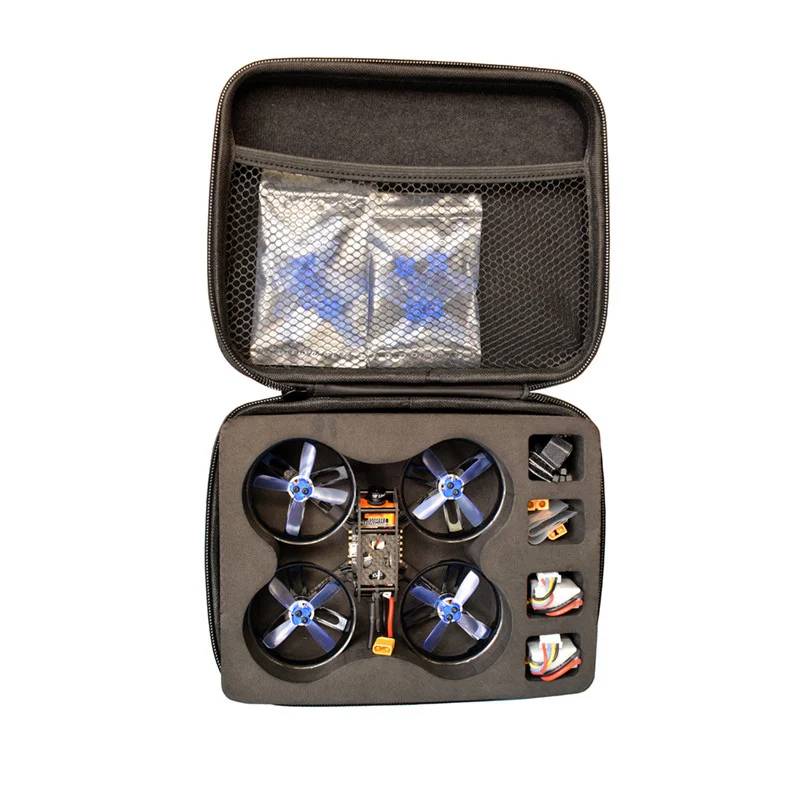

Package included:
1x SPC Maker 110NG Frame
1x Omnibus F4 Nano-
1x Frsky/DSMX/Flysky/futaba(optional receiver)
4x SPC Maker 1106 7500KV brushless motor
1x 28A Mini 4 in 1 BLheli_s ESC (2-4S LiPo)
4x 50mm 4-blades propeller CW
4x 50mm 4-blades propeller CCW
4x 50mm Propeller Protection Cover
1x RunCam Micro Swift 2 1/3 "600TVL , NTSC/ FPV camera 2.3.0 mm lens CCD camera
1x 5.8G 25mW-200mW 48CH /VTX
2x 11.1V 500mAh 30C lipo battery (comes without charger)
1x WS2812 LED Board
4x 3 * 100mm nylon Band-
2x12mm * 150mm magic Band-
2x15mm * 50mm back to back with 3.0 m rubber magic belt
1 x XT60 female plug to XT30 male plug converter
Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
