Specification:
Brand name: SPC Maker
Item name: SPC 110NG
Wheelbase: 110mm
Material: 3k full carbon fiber
Bottom plate thickness: 3.0 mm
Top plate thickness: 2mm
Priduct size: 130mm*145mm*30mm
Weight: 100g (without battery)
Take off weight: 150g (with battery)
Brushless motor: SPC Maker S1106 8000KV motor
Flight controller: Omnibus F4 Nano-
ESC: 28A Mini 4 in 1 BLheli_s ESC (2-4S LiPo)
Receiver: DSMX/Frsky/Flysky/futaba receiver (option)
Propeller: 50mm 4-blades propeller
Camera: RunCam Micro Swift 2 1/3 "600TVL ,NTSC/ FPV camera 2.3.0 mm lens CCD camera
VTX: 5.8g 25MW-200MW 48CH VTX
Flight time: about 4mins
Battery: 11.1V 500mah 30C lipo battery
Compatible Receiver:
1.DSM2- Receiver Support Spectrum/JR(DSM2- protocol) DEVO10/DEVO 7E(with deviation firmware).
2.Frsky Receiver Support FRSKY taranis X9D/X9D PLUS(D16 mode),and XJT (D16 Mode),DJT DFT DHT Transmitter.
3.Flysky Receiver Support FS-I6FS-I6X.FS-I6S.FS-TM8.FS-TM10.FS-I10 and other second-generation AFHDS 2A protocol remote control
4.Futaba Receiver Support TM7,TM8, TM10, TM14 T6EX-2.4G,7C-2.4G,T8FG,T10CG ,T12FG.T14SG.
Parameters

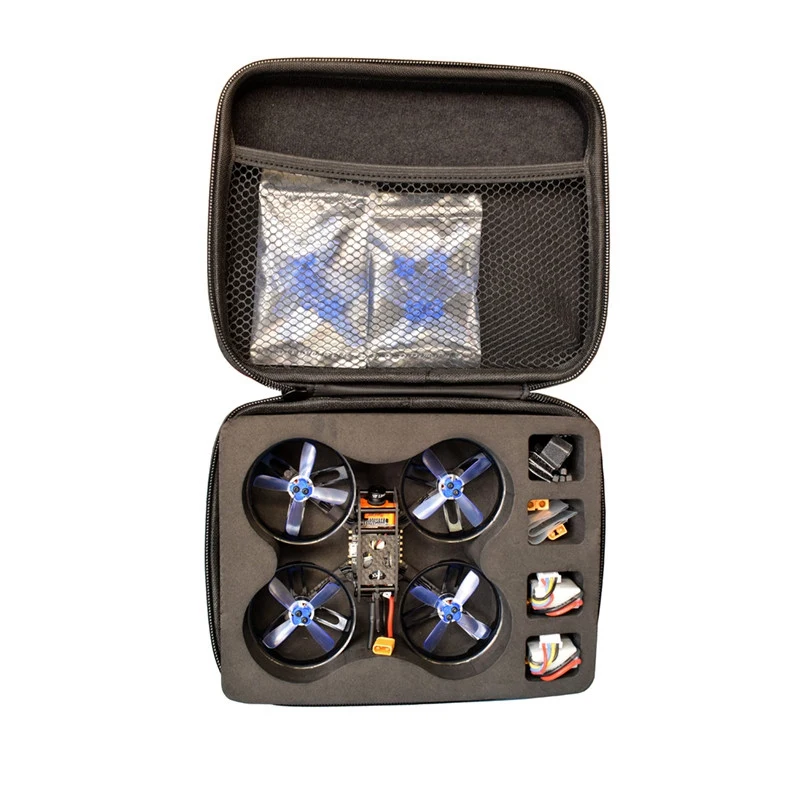

Package included:
1x SPC Maker 110NG Frame
1x Omnibus F4 Nano-
1x Frsky/DSMX/Flysky/futaba(optional receiver)
4x SPC Maker 1106 7500KV brushless motor
1x 28A Mini 4 in 1 BLheli_s ESC (2-4S LiPo)
4x 50mm 4-blades propeller CW
4x 50mm 4-blades propeller CCW
4x 50mm Propeller Protection Cover
1x RunCam Micro Swift 2 1/3 "600TVL , NTSC/ FPV camera 2.3.0 mm lens CCD camera
1x 5.8G 25mW-200mW 48CH /VTX
2x 11.1V 500mAh 30C lipo battery (comes without charger)
1x WS2812 LED Board
4x 3 * 100mm nylon Band-
2x12mm * 150mm magic Band-
2x15mm * 50mm back to back with 3.0 m rubber magic belt
1 x XT60 female plug to XT30 male plug converter













Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3.0 month Sellers Warranty,if item defective in 3.0 month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3.0 month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
