Description
?
Features:
1.Model: TDA7379

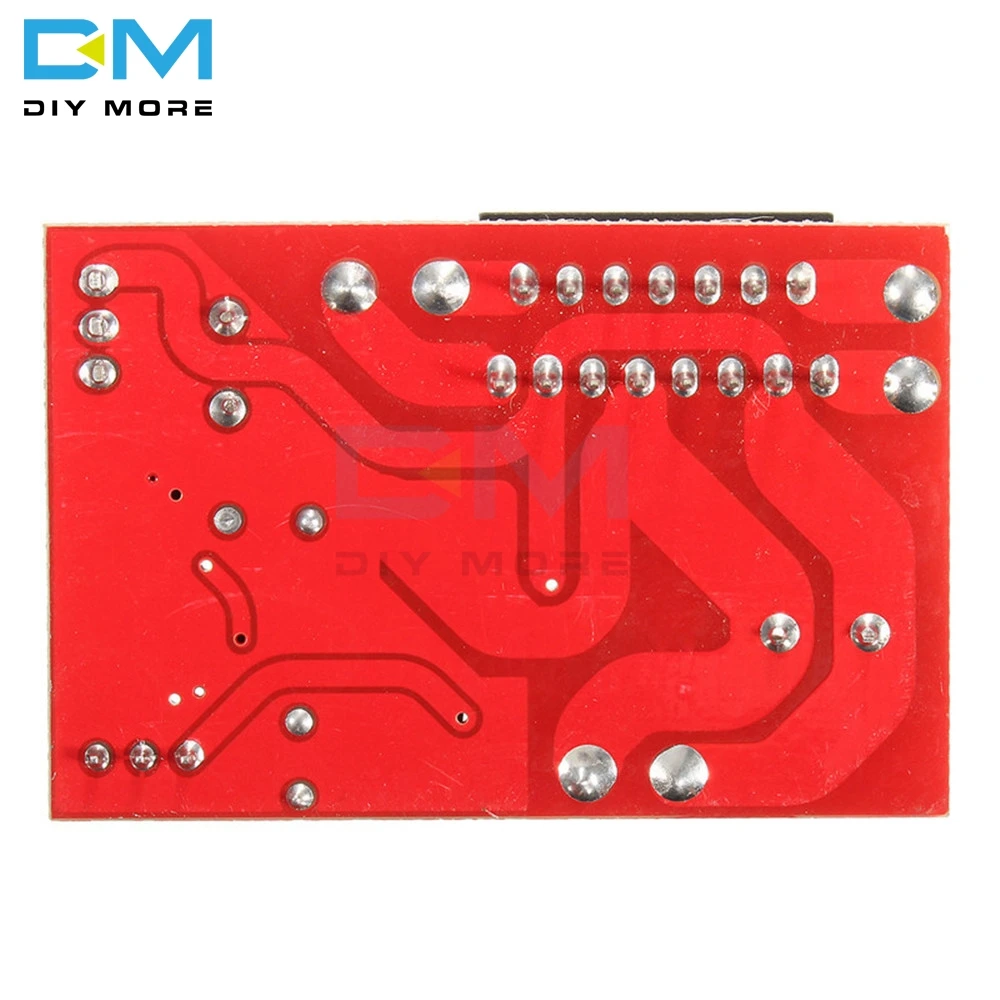

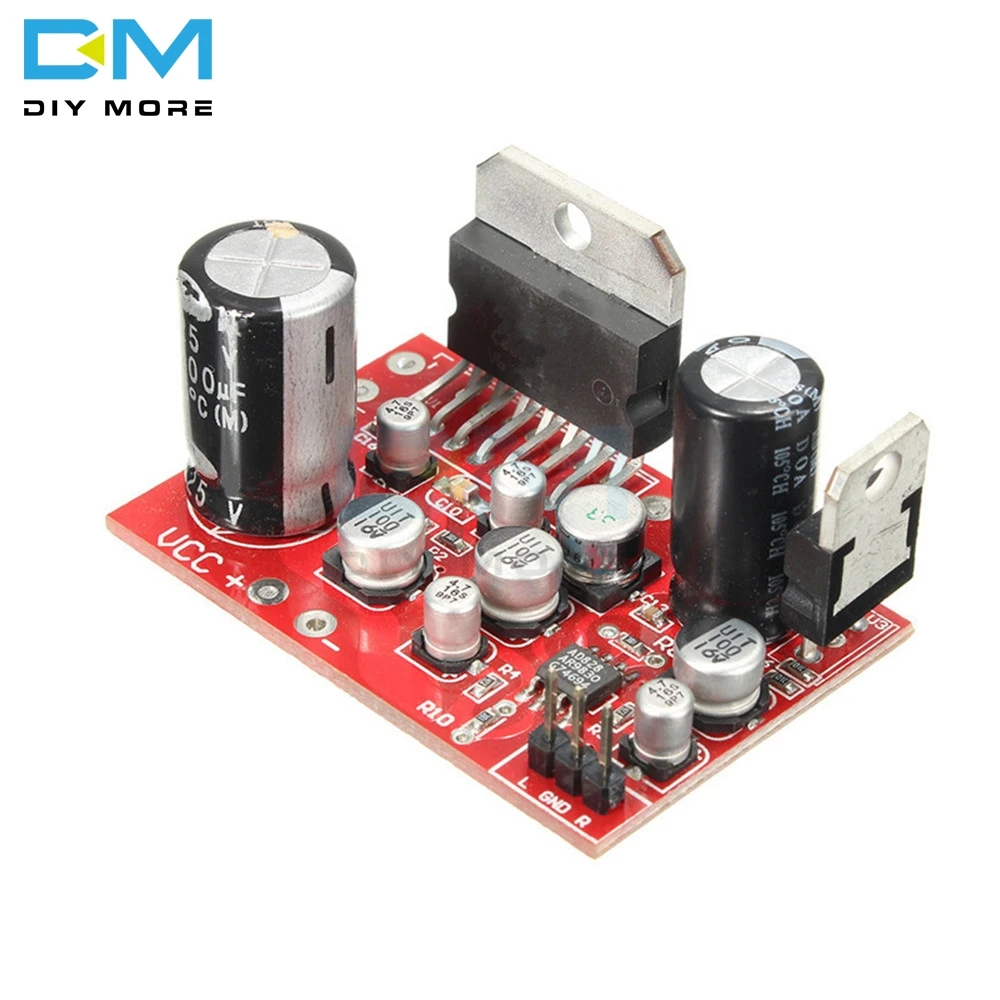

2.Name: Amplifier Board
3.With fever-AD828 preamplifier
4.Preamp input and output coupling capacitors Promise
of capacitors fever, better than the polarity effect.
5.Power amplifier chip:TDA7379 + AD828
6.Power supply :DC9-17.5V
7.Output power:38W+38W
8.Board size: 5x3.2cm/1.97x1.26inch ??
Quantity: 1 Pc
Note: This power amplifier board is sold without heat sink. The power amplifier board must be equipped with a sufficiently large heat sink before the test machine.£¨7809 voltage regulator IC does not need to add heat sink£©
R8, R10 are the magnification setting resistors (delivery is about 2-3 times by default. You can change the magnification according to your needs. The resistance can be selected from 10k-47k. The larger the resistance value, the higher the magnification. If it is used Plug-in resistor, you can remove the original chip resistor and solder the plug-in resistor to the pads at both ends of the chip position)
R8, R10 are the magnification setting resistors (delivery is about 2-3 times by default. You can change the magnification according to your needs. The resistance can be selected from 10k-47k. The larger the resistance value, the higher the magnification. If it is used Plug-in resistor, you can remove the original chip resistor and solder the plug-in resistor to the pads at both ends of the chip position)
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
?
Package Contents:
1x Amplifier Board
?
?
?
