Product Description
Description:
24V 7S 45A 18650 Li-ion Lipolymer Battery BMS PCB PCM Battery Protection Board for Ebike Ebicycle
Specification:
Size: 16A( 24*62*9mm/ 0.9"*2.4"*0.3")
25A 35A 45A(46*75*9mm/ 1.8"*2.9"*0.3")
60A(61*73*9mm/ 2.4"*2.8"*0.3")
Voltage: 24V
Over discharge voltage: 2.8V
Over charge pressure: 4.25V
Rated voltage: 3.7V
Charging voltage: 29.4V
Charging Current: 16A 25A 35A 45A 60A
Maximal Continuous Discharging Current:16A 25A 35A 45A 60A
Peak Discharging Current: 50A 60A 100A 180A 180A
Over Current Protection Current: 50A 60A 100A 180A 180A
Over Current Protection Condition: Disconnect the load
Short Protection
Detection Condition:Exterior Short Curcuit
Detection Delay Time:250uS
Release Condition:Disconnect the load
Temperature Protection: 65℃ or 75℃
Internal Resistance: MOSPET ≤10mΩ
Application area:
Applied to electric tools, electric scooters, motorcycles, electric motorcycles, electric tricycles, and electric vehicles.
Feature:
- Lithium custom 08 series MOS tube, low internal resistance, high current, high precision
- IP67 international dustproof and waterproof rating
Achieve international IP67 dustproof and waterproof grade, which can protect against short-term immersion and effectively solve the erosion of chips due to rainy or wet weather.
- Additional solder terminals for easy soldering
In order to facilitate the customer's better wiring, the company thoughtfully designed the solder terminal wiring method to improve the customer's wiring efficiency.

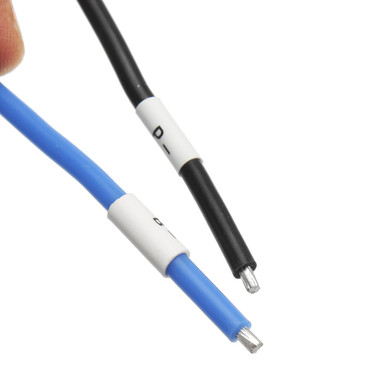

B-(battery negative wiring) P-(discharge negative wiring) C-(charge negative wiring)
Package include:
1x Lithium Battery Protection Board with wires
Notice:
1.Please allow 1-5mm error due to manual measurement. Please make sure you do not mind before you bid.
2.The colors may have different as the difference display, please understand.
