Product Description
Package List:
1x Manual Tile Cutter
1x English User Manual
Specification:

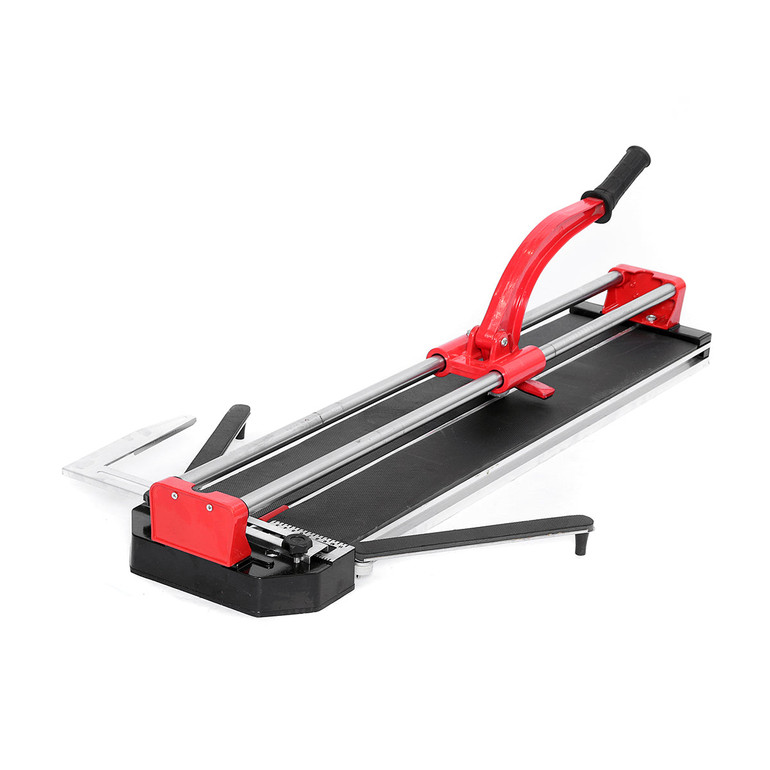

Name: Manual Tile Cutter with Laser
Model: D52287
Base Material: Aluminium Alloy
Solid Chrome Rod Diameter: 20mm / 0.79in
Cutting Width Range: 35mm-800mm / 1.38-31.50in
Cutting Thickness: 16mm / 0.63in
Floor Thickness: 40mm / 1.57in
Size: 101*28cm / 39.76*11.02in (L*W)
Features:
1. Applies to all types of tiles including ceramic and porcelain tiles
2. Die casting cutting assembly with ball bearing for tough & smooth cutting
3. Steel baseboard with foam cushion surface
4. Double solid steel sliding rails
5. Buffer rubber O-ring to reduce the impact between bearing block and rail end
6. Cuts one piece of tile within 5 seconds
7. Two choices of gauge
8. Laser guide for accurate cutting
9. Simple and convenient replacement of diamond blade
10.Ideal for professional large tile cutting work
How to Use:
1. Open the free foot and tighten the nut
2. Adjust the size of the ruler to be cut on the ruler and confirm the screw by hand.
3. Place the tiles on the platform
4. When cutting, pull the push-pull rod to the rear end, let the blade press gently on the tile, push it forward along the main shaft to the front control slot, put the foot on the tile, and tap the end of the push-pull handle. , the tile can break with the mark
