Product Description
Description:

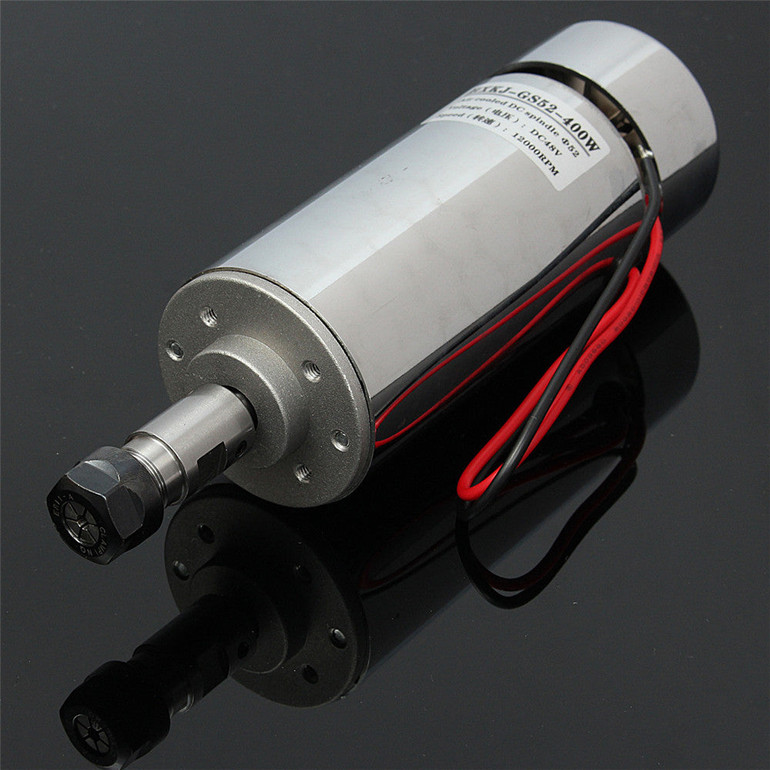

400W DC 12V-48V 12000rpm air cooled spindle motor, suitable for carving PCB, acrylic, drilling, etc.
Specification:
Features:
Package Included:
1 x Spindle Motor
More Details:
400W DC 12V-48V 12000rpm air cooled spindle motor, suitable for carving PCB, acrylic, drilling, etc.
Specification:
|
Operating voltage
|
12-48VDC |
| Power | 400W |
| Speed | 3000-12000r / min (12V-3000r / min, 24V-6000r / min, 36V-9000r / min, 48V-12000r / min) |
| Torque | 500mN.m |
| Insulation resistance | > 2 megohms |
| Dielectric strength | 400V |
| Diameter | 52mm |
| Chuck portion length | Arbor parts 35mm, (including the nut and sandwich 43mm) |
| Part chuck diameter | 16mm |
| Motor Overall Length | 185mm (comprising gripping parts and motor) |
| Spindle Weight | 0.9KG |
| Spindle runout | about 0.01-0.03 |
It can be used to engrave metal or non-metal and other materials.
The spindle with air cooling, can work long hours.
The motor is a lot of DIY users to use, high speed, low noise, suitable for carving PCB, acrylic, drilling, etc.
1 x Spindle Motor
